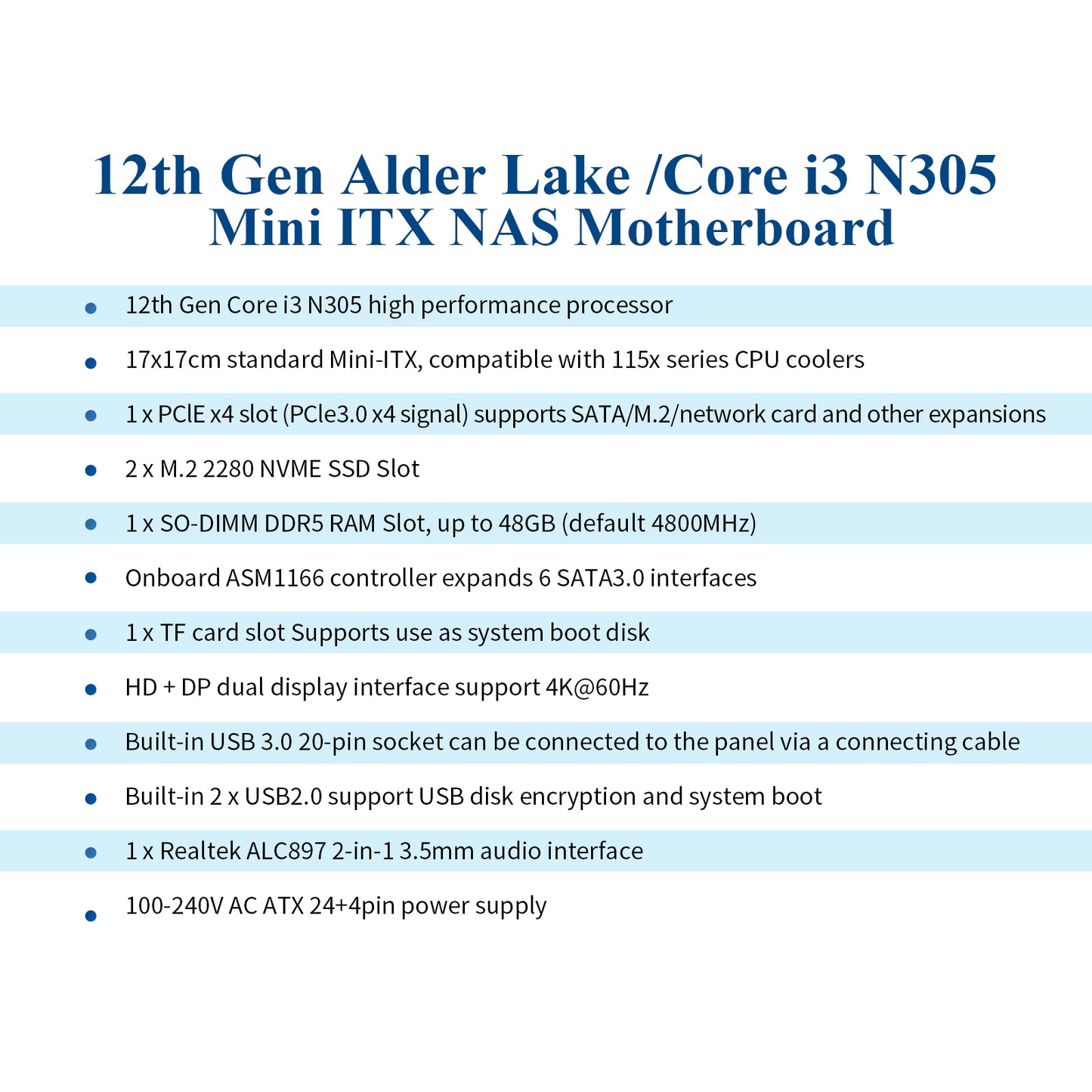

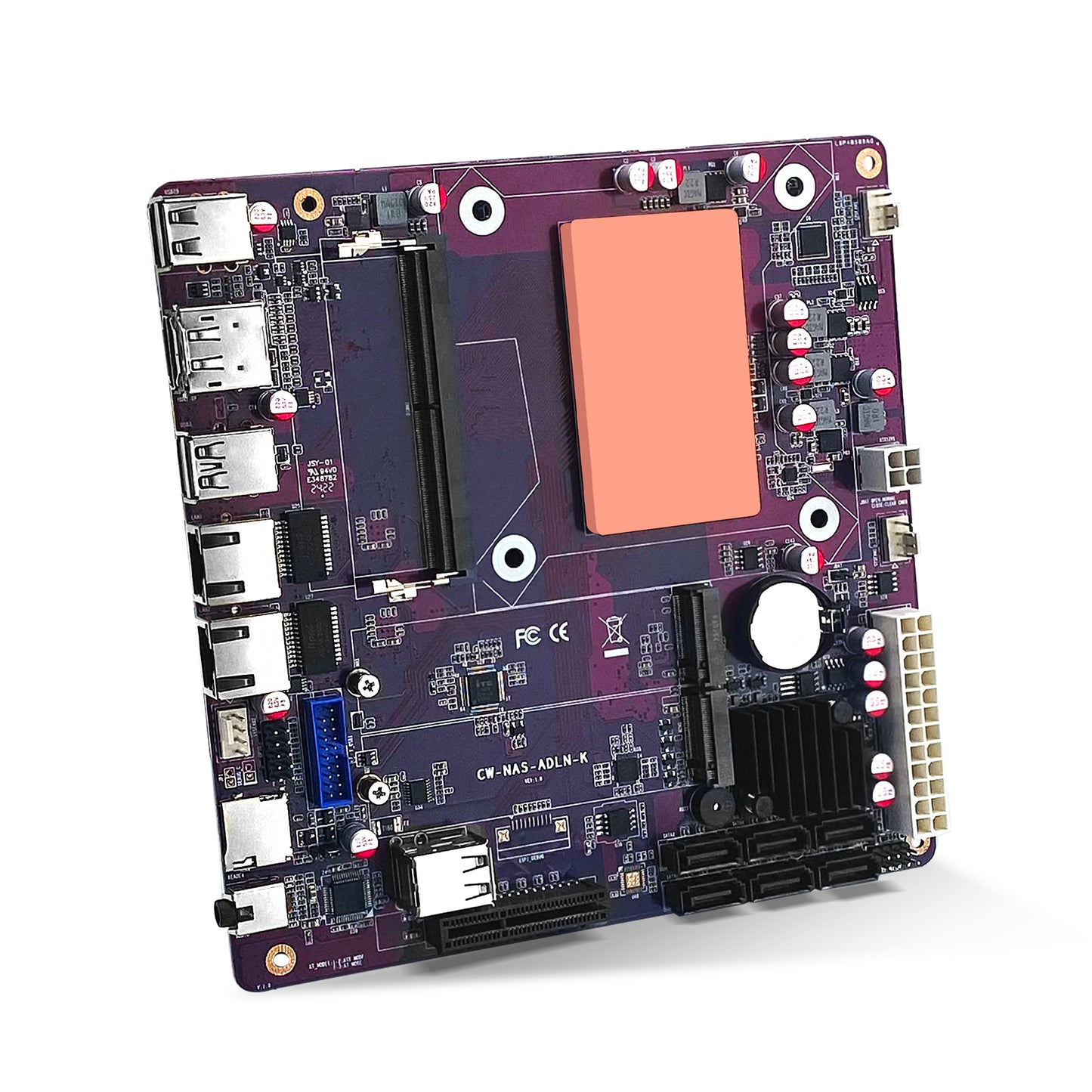

Purple Mini-ITX NAS Motherboard with 2 LAN i3 N305
CPU: In-tel 12th Gen i3 N305 8 Cores, 8 Threads, 6MB Cache, up to 3.8 GHz.
GPU: UHD Graphics with 32 EUs.
TDP: 15 W.

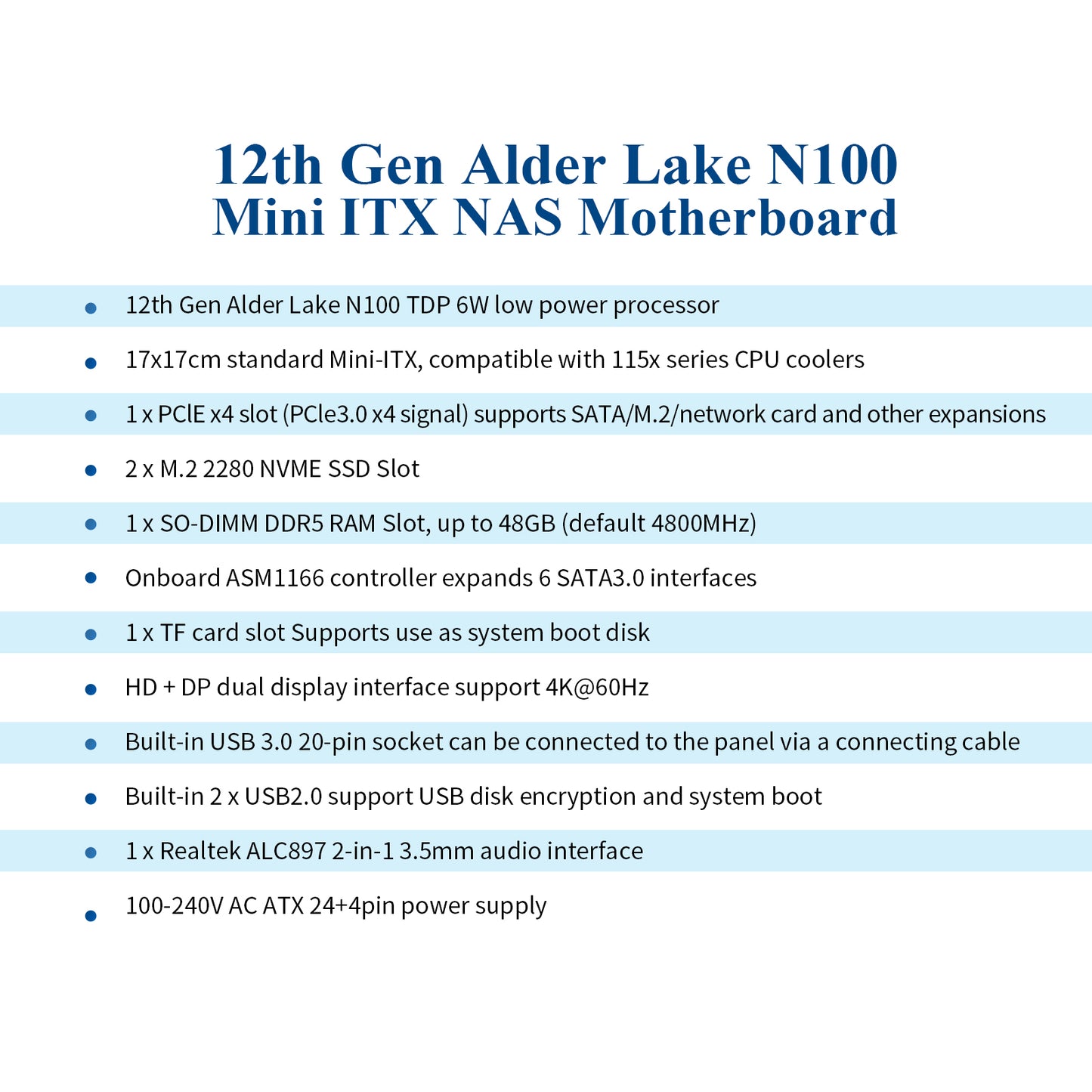

Purple Mini-ITX NAS Motherboard with 2 LAN N100
CPU: In-tel 12th Gen N100 4 Cores, 4 Threads, 6MB Cache, up to 3.4 GHz.
GPU: UHD Graphics with 24 EUs.
TDP: 6 W.
System: Windows 11 Pro
Memory: 1 x SO-DIMM 5600MHz DDR5 slots, up to 48 GB.
Storage: 6 x SATA3.0 (ASM1166 controller), 2 x M.2 NVMe 2280 PCIe3.0x1 slots.
LAN Port: 2 x i226-V 2.5GbE RJ45 LAN
Display: 1 x HD2.0 + 1 x DP1.4a support 4K@60HZ 2 display.
FAN: 1 x 4pin SYSFAN1 to support temperature-controlled fan, 1 x 4-pin SYSFAN2 not supporting PWM, 1 x 4pin CPUFAN1.
Feature: Compatible with Wins 10/11, Linux, supports EFl mode only.

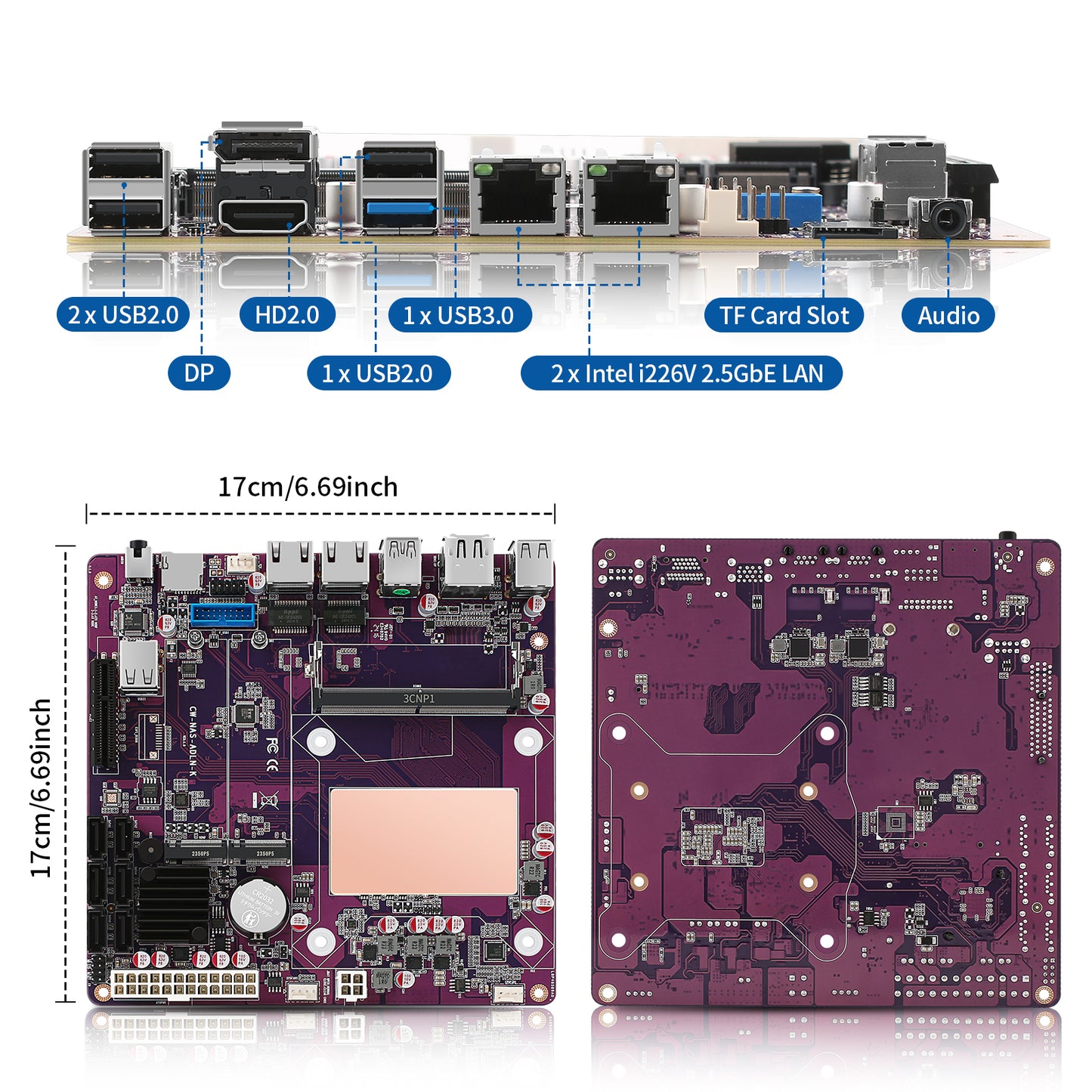

I/O: 1 x HD2.0, DP1.4a, USB 3.0, 3 x USB 2.0, 1 x TF card slot, 1 x ALC897 2-in-1 audio interface, 2 x i226-V 2.5GbE LAN ports.
Power: 100-240V AC ATX 24+4pin power supply

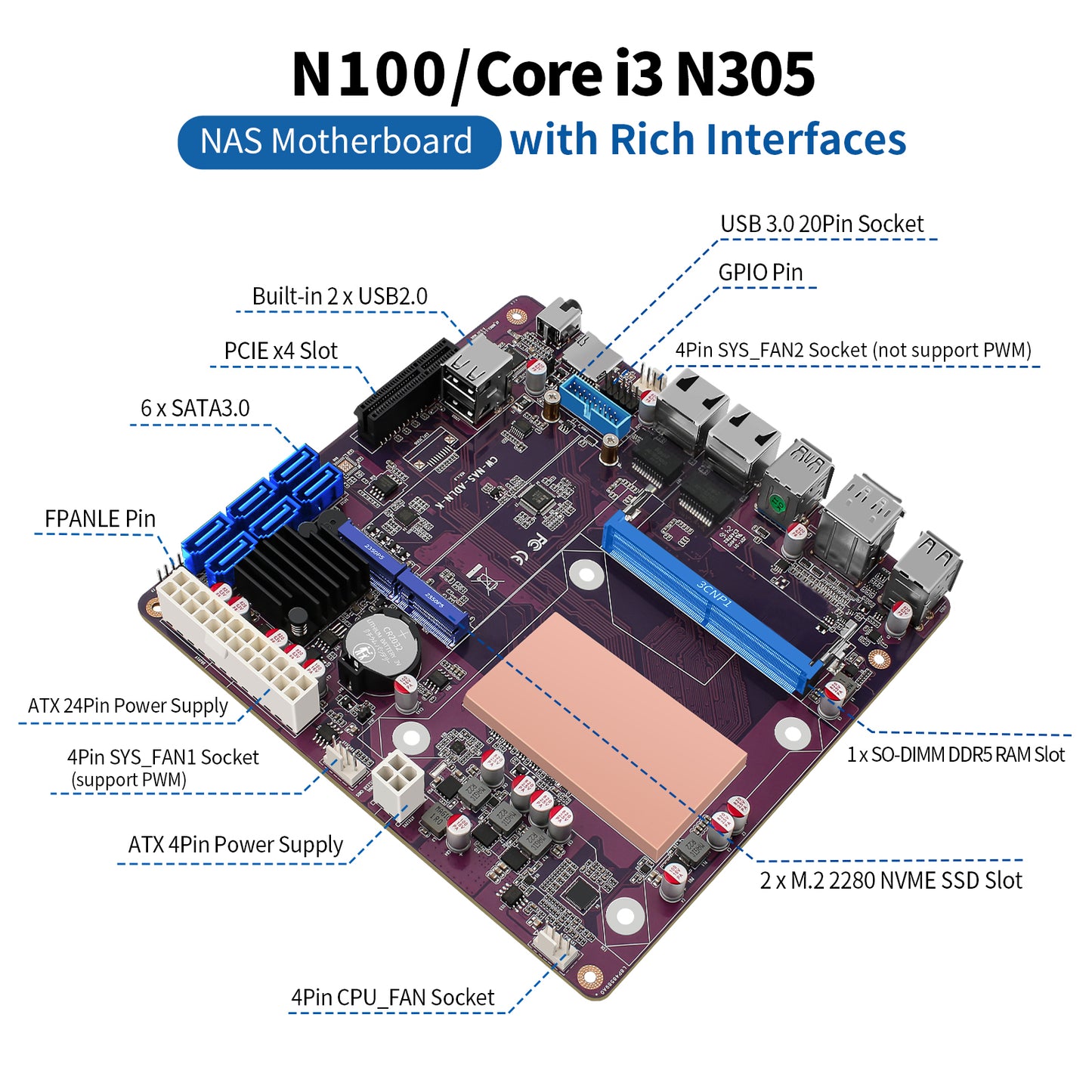

Other Expansion: Onboard 1 x USB 3.0 header, 2 x USB 2.0 ports, 1 x PCle x4 slot (PCle 3.0 x4 signal), 1 x Power on/off pin (FPANEL pin), 1 x Buzzer, 1 x GPIO pin header
