CWWK Low Power NAS Motherboard i3 N305/ N100 with 6 Bay SATA3.0, Mini ITX Mainboard with 4 Port i226V 2.5GbE LAN, Soft Router Board DDR5 with Dual M.2 NVMe, 8GB RAM 128GB SSD

CWWK Low Power NAS Motherboard i3 N305/ N100 with 6 Bay SATA3.0, Mini ITX Mainboard with 4 Port i226V 2.5GbE LAN, Soft Router Board DDR5 with Dual M.2 NVMe, 8GB RAM 128GB SSD

$363.90 USD
$363.90 USD
Sale Sold out
Shipping calculated at checkout.

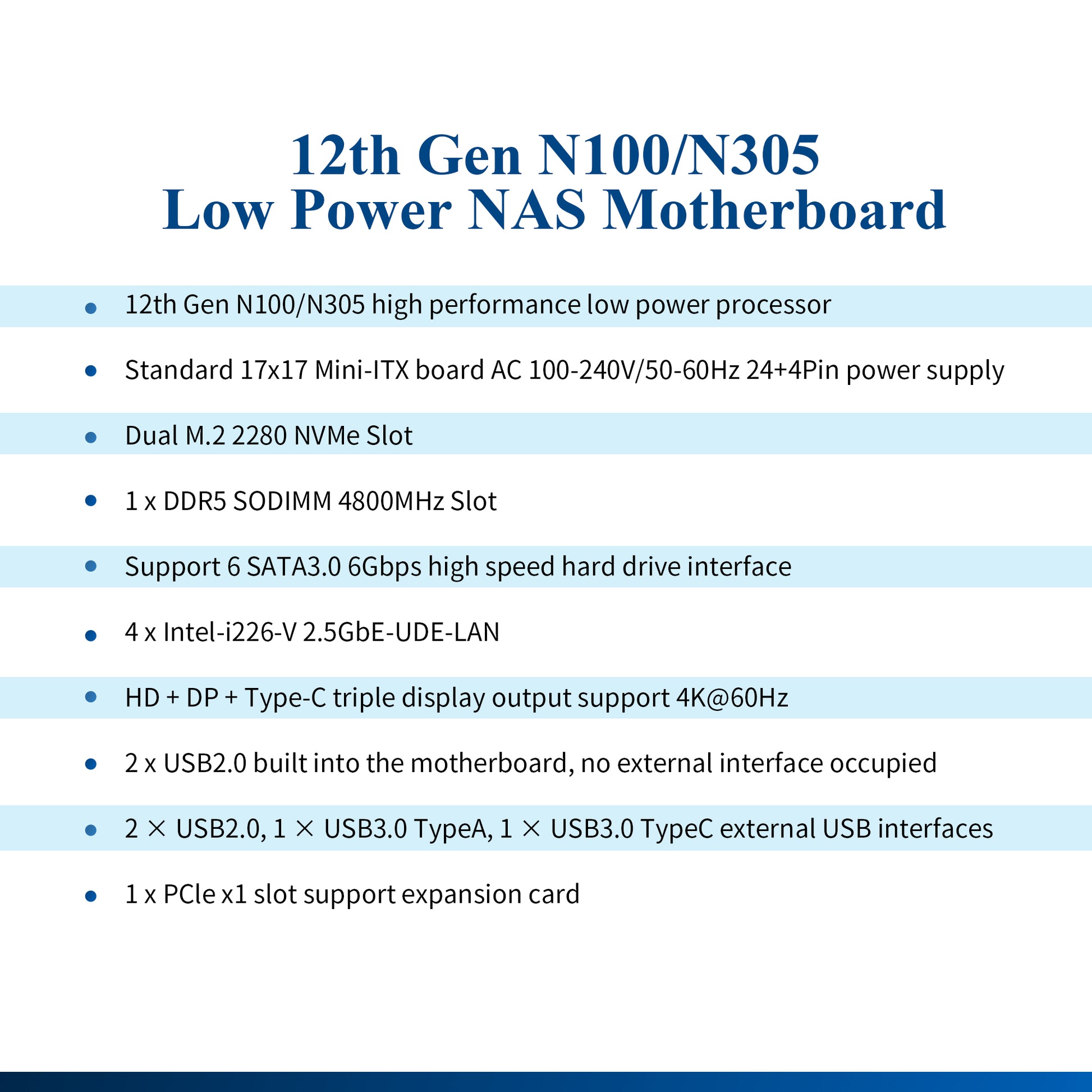

CPU
DDR5 RAM/NVME SSD

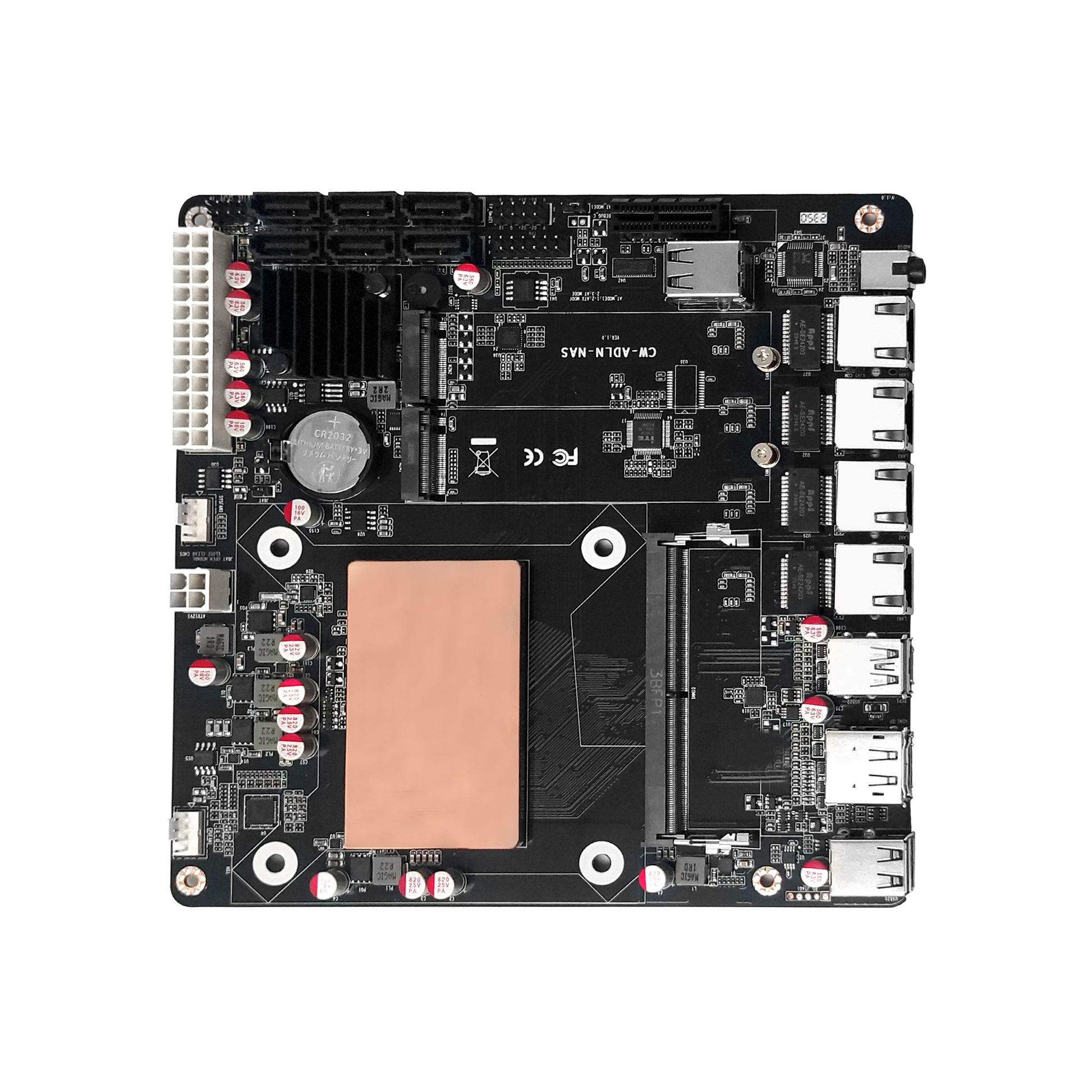

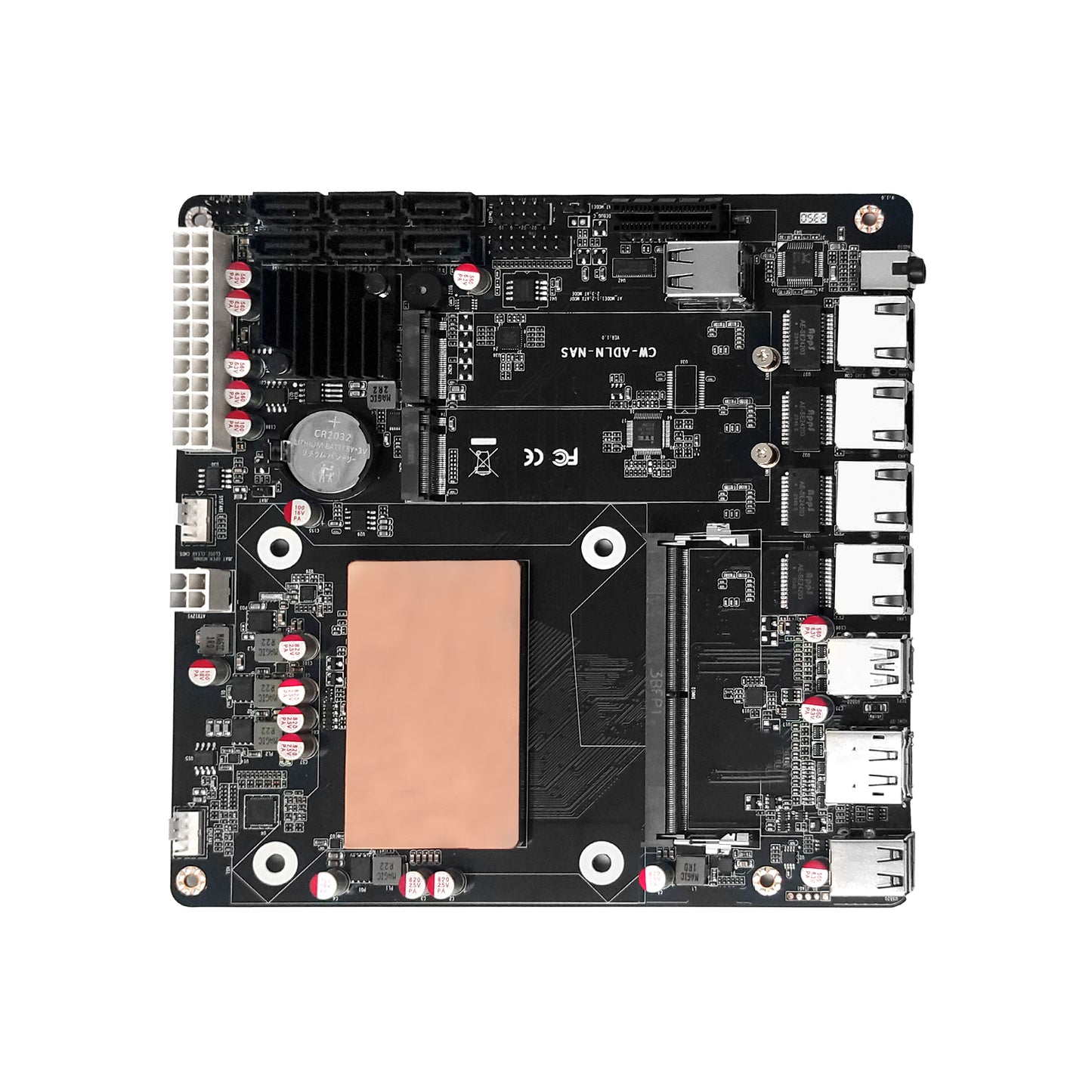

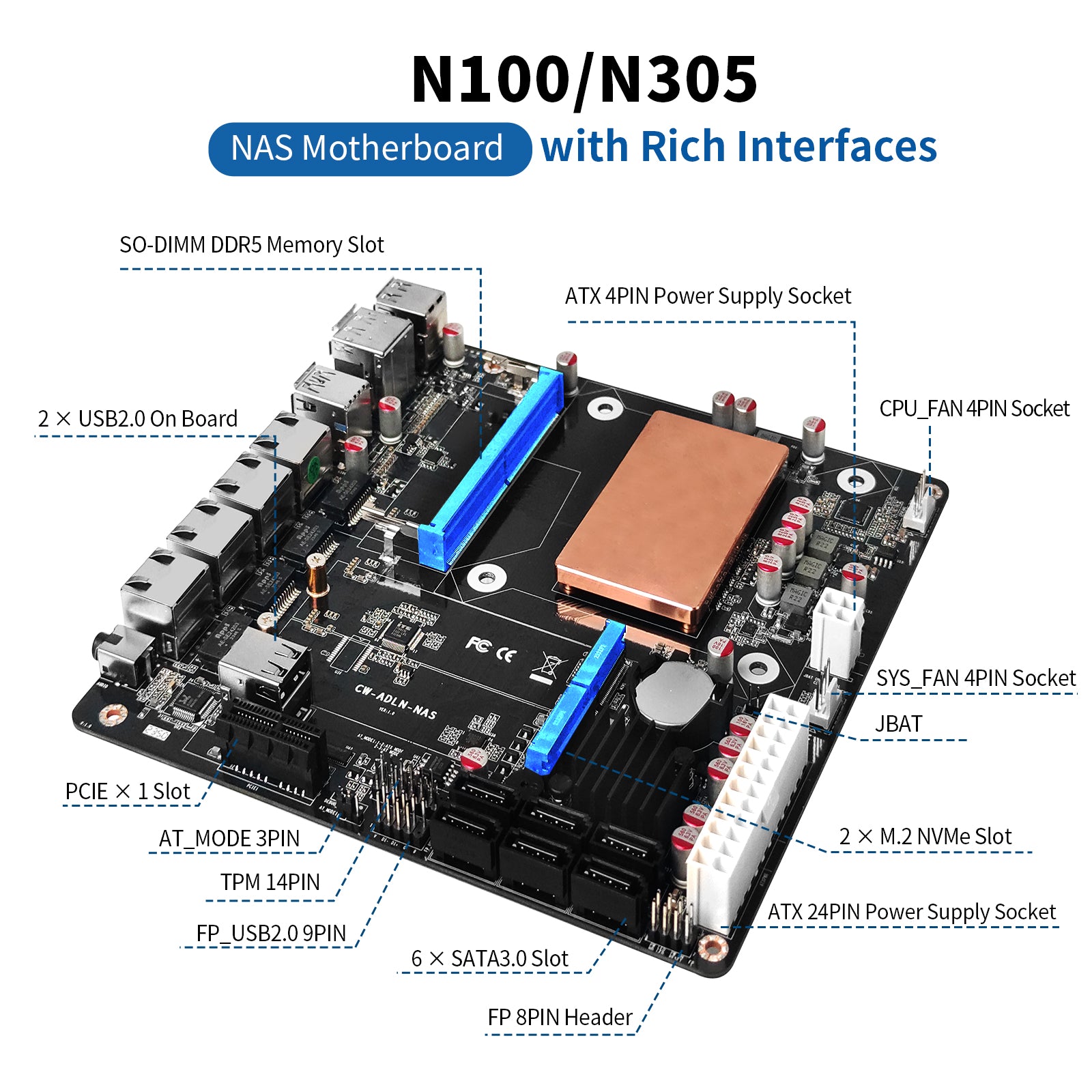

 Mini-ITX NAS Motherboard with 4 LAN i3 N305
CPU: In-tel 12th Gen i3 N305 8 Cores, 8 Threads, 6MB Cache, up to 3.8 GHz.
GPU: UHD Graphics with 32 EUs.
TDP: 15 W.

Mini-ITX NAS Motherboard with 4 LAN N100
CPU: In-tel 12th Gen N100 4 Cores, 4 Threads, 6MB Cache, up to 3.4 GHz.
GPU: UHD Graphics with 24 EUs.
TDP: 6 W.

System: Windows 11 Pro
Memory: 1 x SO-DIMM 4800MHz DDR5 slots, up to 48 GB.

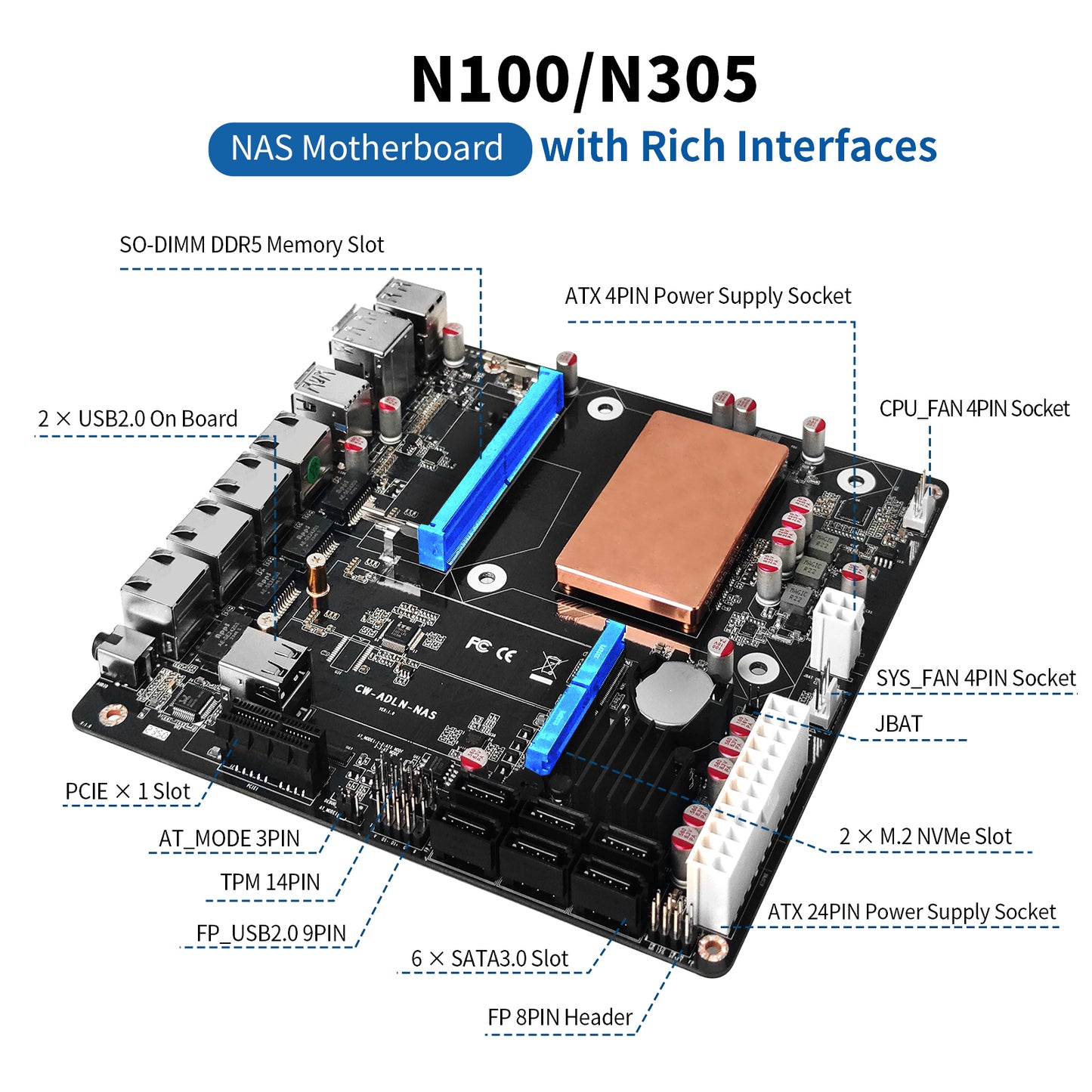

Storage: 6 x SATA3.0 (JMB585 controller), 2 x M.2 NVMe 2280 PCIe3.0x1 slots.
LAN Port: 4 x i226-V 2.5GbE RJ45 LAN
Display: 1 x HD2.0 + 1 x DP1.4a support 4K@60HZ, and 1 x Type-C for 3 display outputs.
FAN: 1 x 12V 4pin SYSFAN to support PWM, 1 x 12V 4pin CPUFAN.
Feature: Compatible with Wins 10/11, Linux, supports EFl mode only.

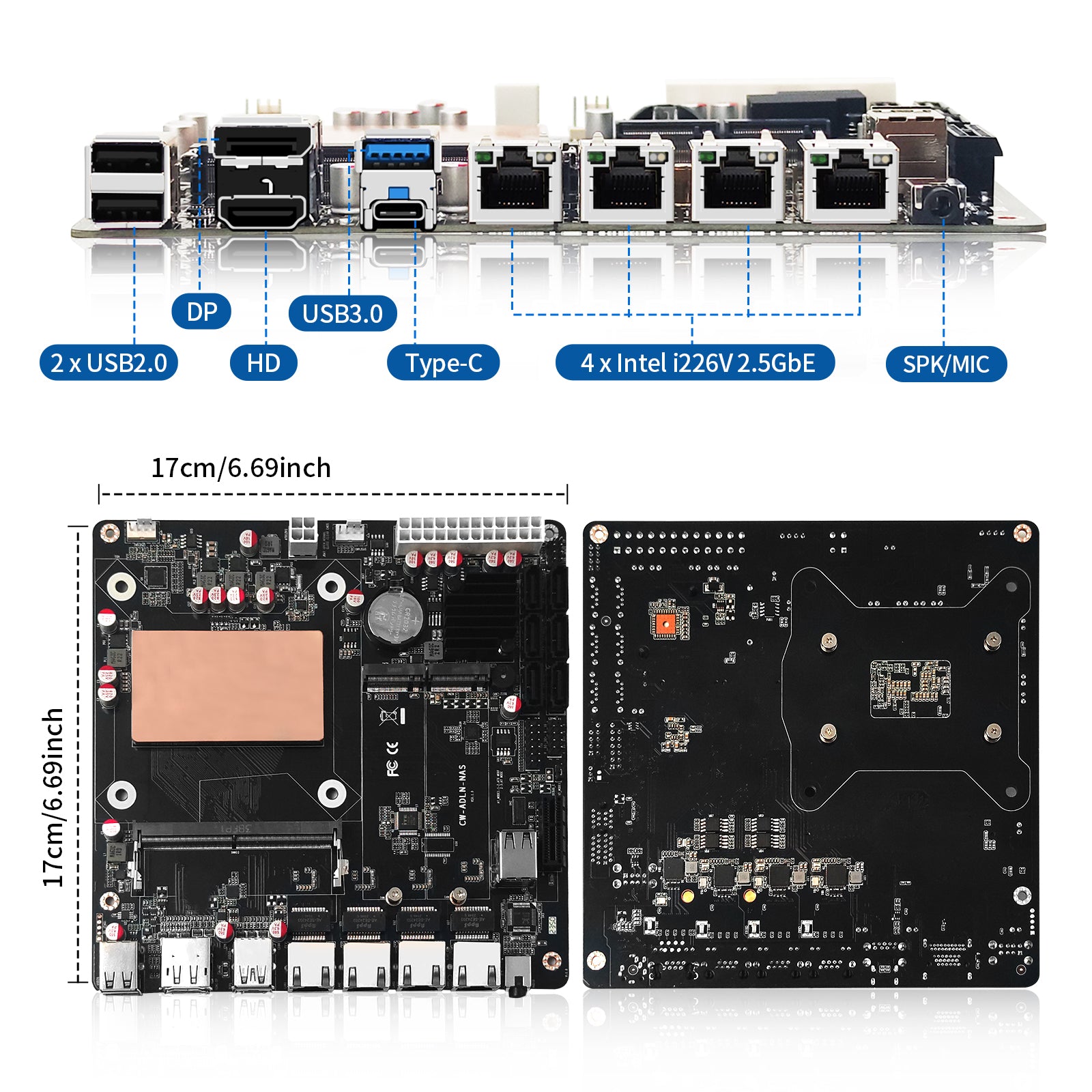

I/O: 1 x HD2.1, DP1.4b, USB 3.0, 2 x USB 2.0, 1 x TF card slot, 1 x ALC897 2-in-1 audio interface, 4 x i226-V 2.5GbE LAN ports.
Power: 100-240V AC ATX 24+4pin power supply.
Dimension: Mini ITX, 6.7 x 6.7inch, 17 x 17cm.
