11th Gen Celeron N5105 Low Power NAS Motherboard CPU: In-tel 11th Gen Celeron N5105 4 cores, 4 threads, 4MB Cache, up to 2.9 GHz. GPU: UHD graphics with 24 EUs. TDP: 10 W.
11th Gen Pentium Silver N6005 Low Power NAS Motherboard CPU: In-tel 11th Gen Pentium Silver N6005, 4 cores, 4 threads, 4MB Cache, up to 3.3 GHz. GPU: UHD graphics with 32 EUs. TDP: 10 W.

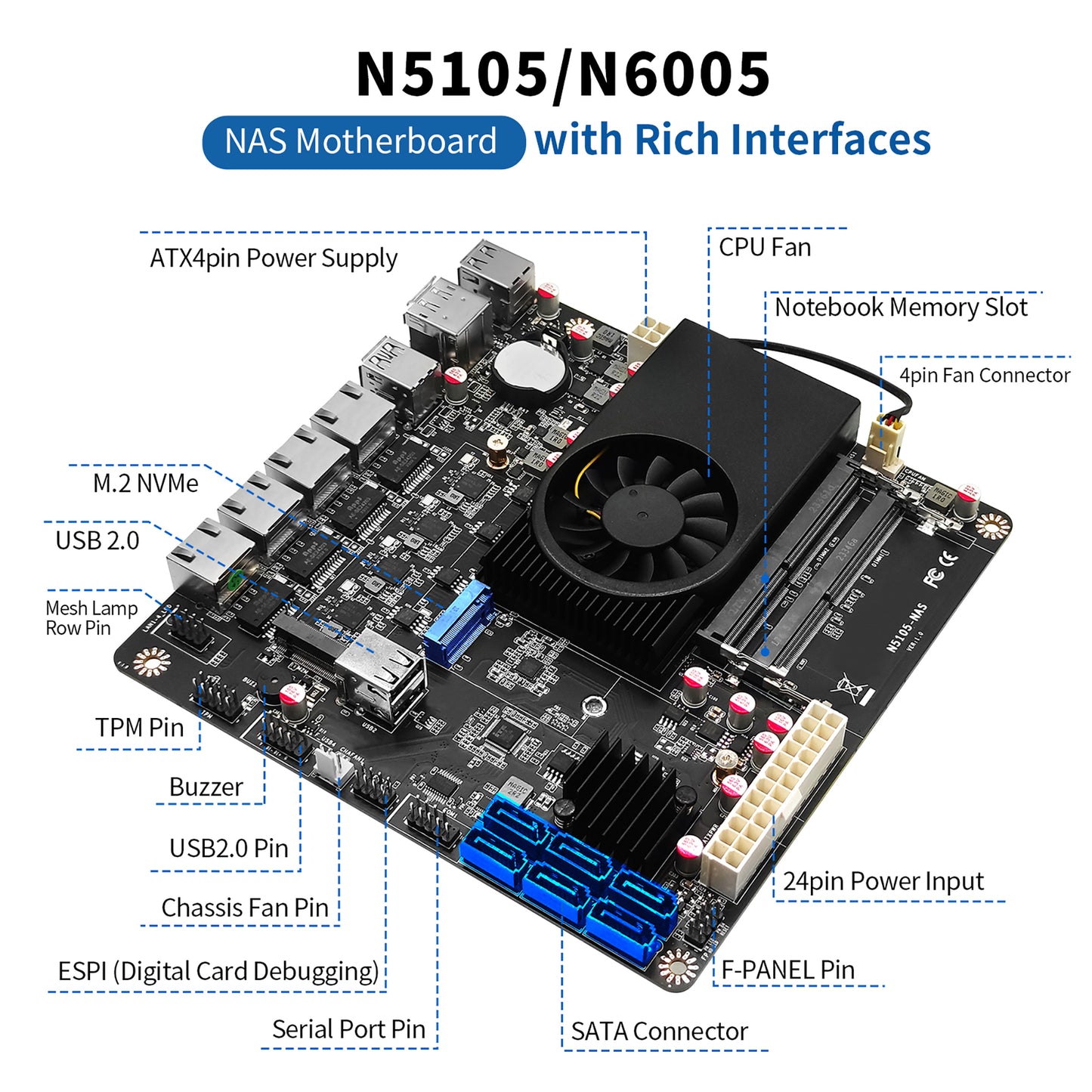

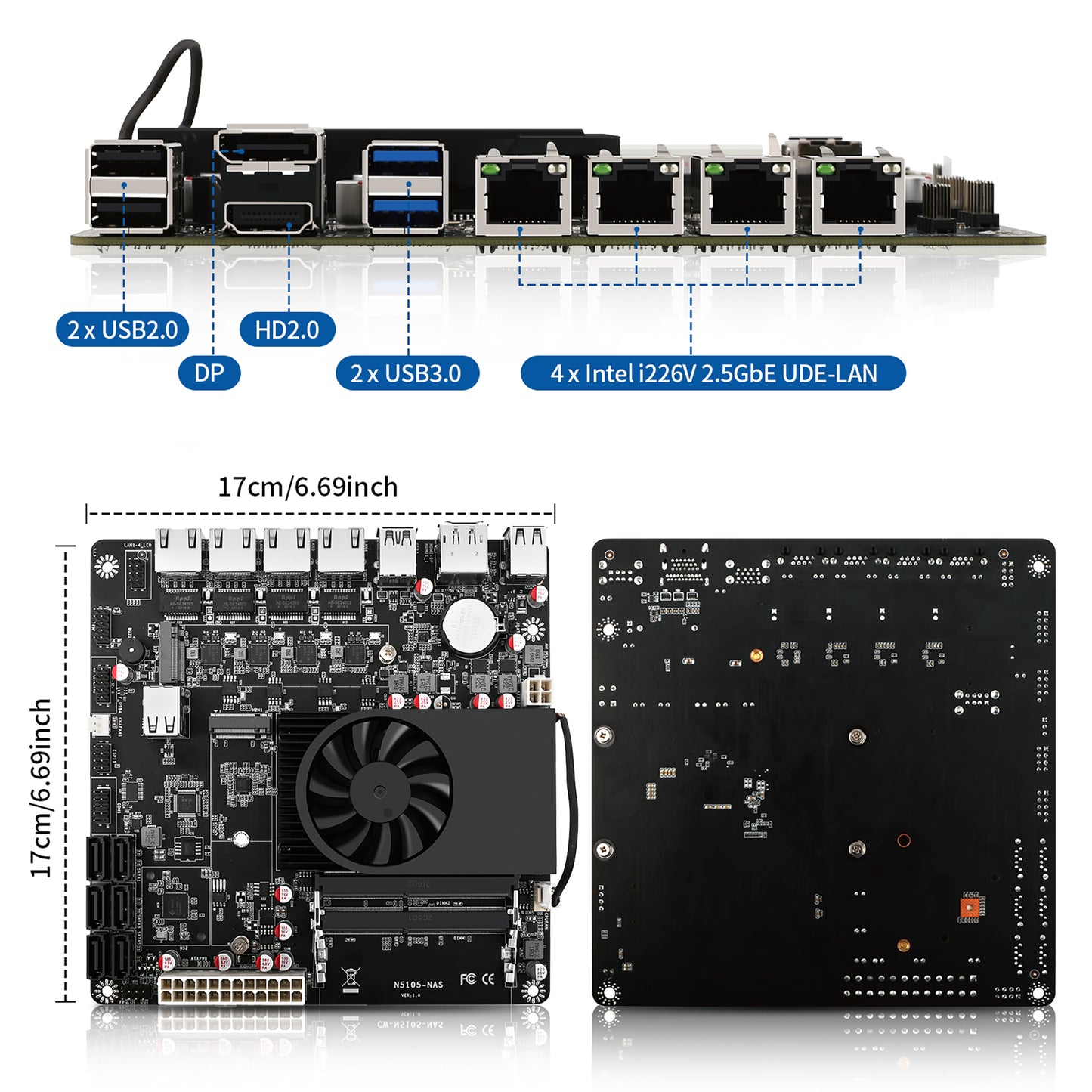

System: NAS system RAM: 2 x SO-DIMM DDR4 2400/2666/2933MHz slots, max 64 GB. SSD: 2 x M.2 2280 NVMe ( Pcie3.0 x 1) slots. Expand: 6 x SATA3.0 6Gbps slots. LAN Port: 4 x 2.5GbE I226-V Display: 2 x HD2.0 + 1 x DP1.4 4K@60HZ 2 display. FAN: 1 x 4PIN intelligent temp control fan. Feature: Support Wake-on-LAN, watch-dog, GPIO and PXE boot etc. I/O: 4 x LAN, 2 x USB3.0, 2 x USB2.0, 1 x HD, 1 x DP. Operating Temperature: ﹣10°c~70°c Storage Temperature:﹣20°c~70°c Humidity: 5%~90%, no condensing Power: 100-240V AC ATX 24+4pin power supply Other Expansion: 1 x COM Pin header, 1 x TPM Pin header
