CWWK NAS Motherboard Industrial, 6 Bay, Core i3-1115G4, Mini Itx, 4 × I226V 2.5GbE LAN, DDR4 32GB RAM 1TB NVMe SSD(PCIe3.0×2), 1 × SFF-8643, PCIE×4, DP + HD + Type-C(4K@60Hz)

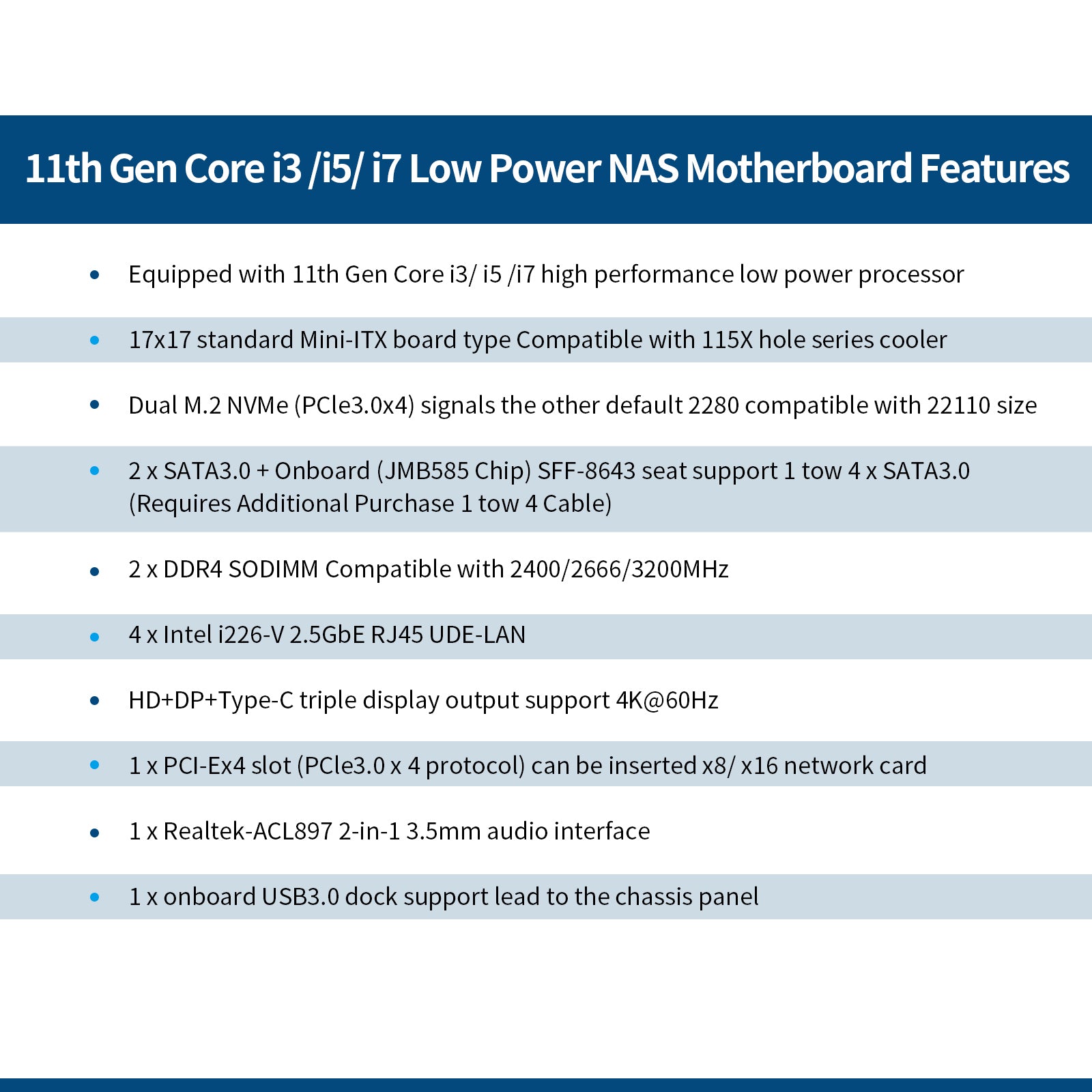

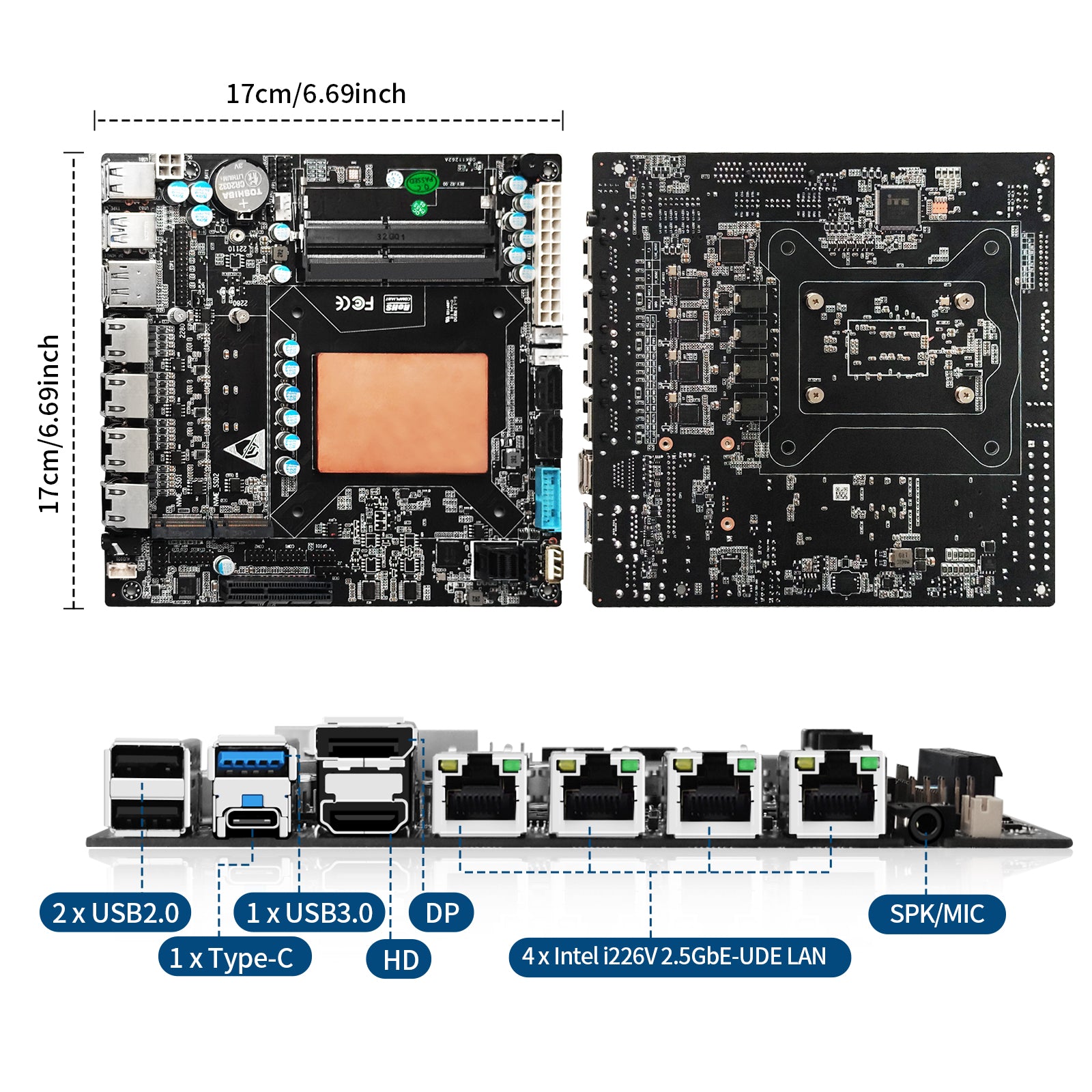

Mini-itx NAS motherboard: 17x17 standard Mini-ITX form factor Compatible with 115X hole series coolers. It can be used for personal data storage and management, such as building a home audio/video system, smart photo album (QuMagie), home intelligence system (HomeAssistant), 24-hour unmanned live broadcasting system, personal netdisk,etc., and it can also be used for enterprise data storage and management, such as monitoring image storage, and enterprise cloud drive. etc.
Low-power processor: Intel 11th generation Core i3-1115G4 low-power processor, 2 cores, 4 threads, up to 4.1GHz, 6MB L3 cache. Built-in Intel UHD Graphics processor, TDP 12-28W.

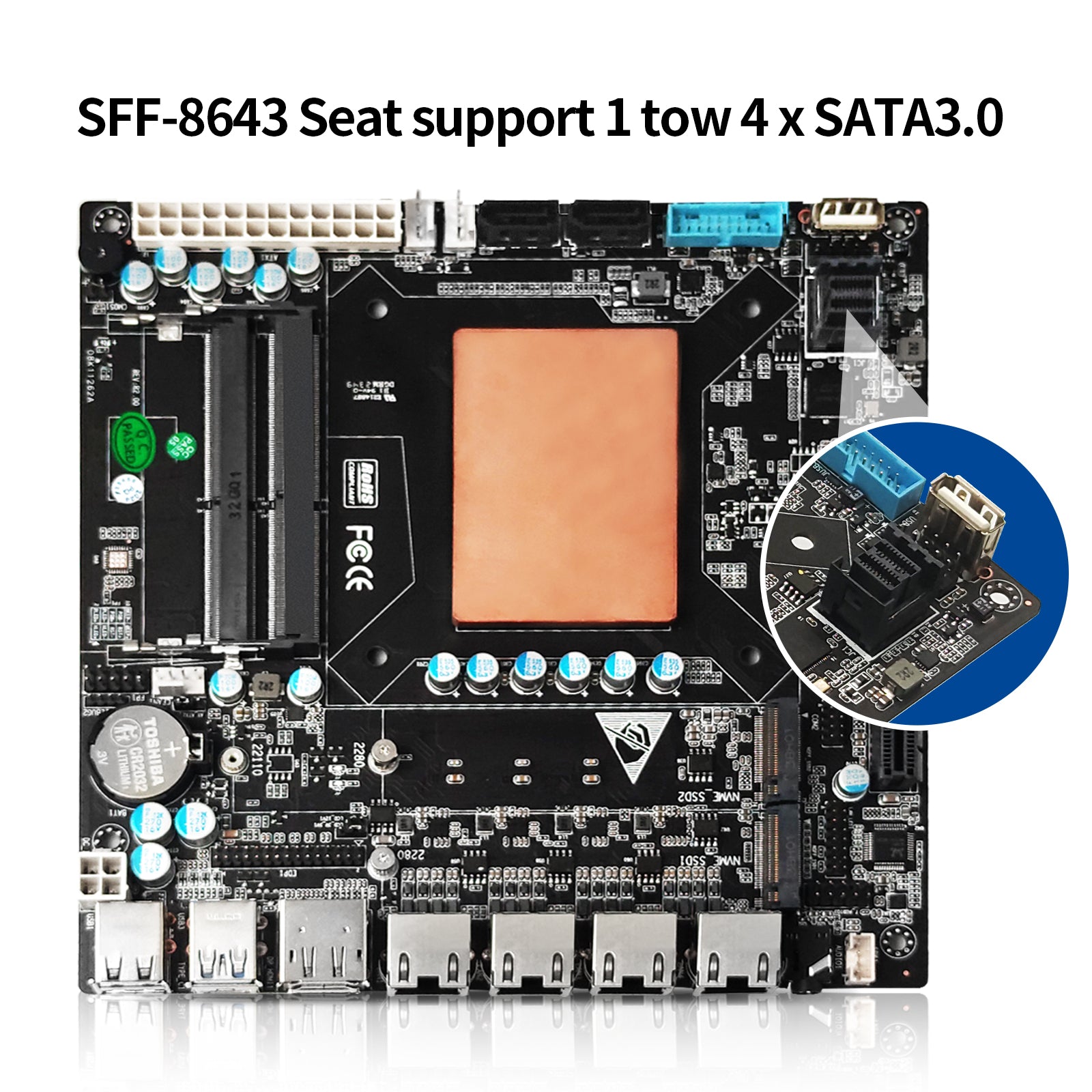

6-Bay: 1 x SFF-8643 seat, equipped with JMB585 chip, maximum support for expanding 4 SATA3.0. plus 2 SATA3.0 dock, the whole motherboard can support expanding up to 6 SATA3.0.

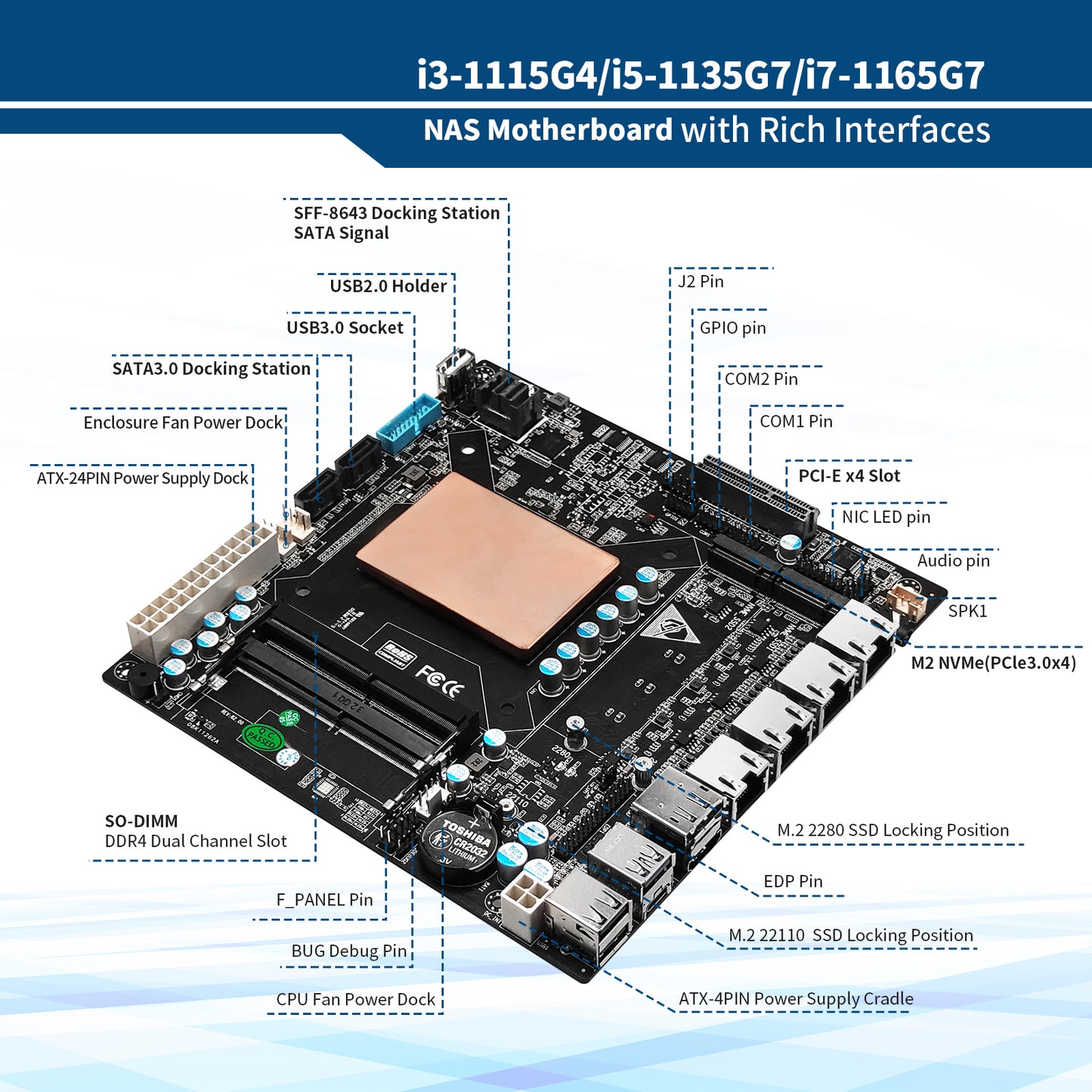

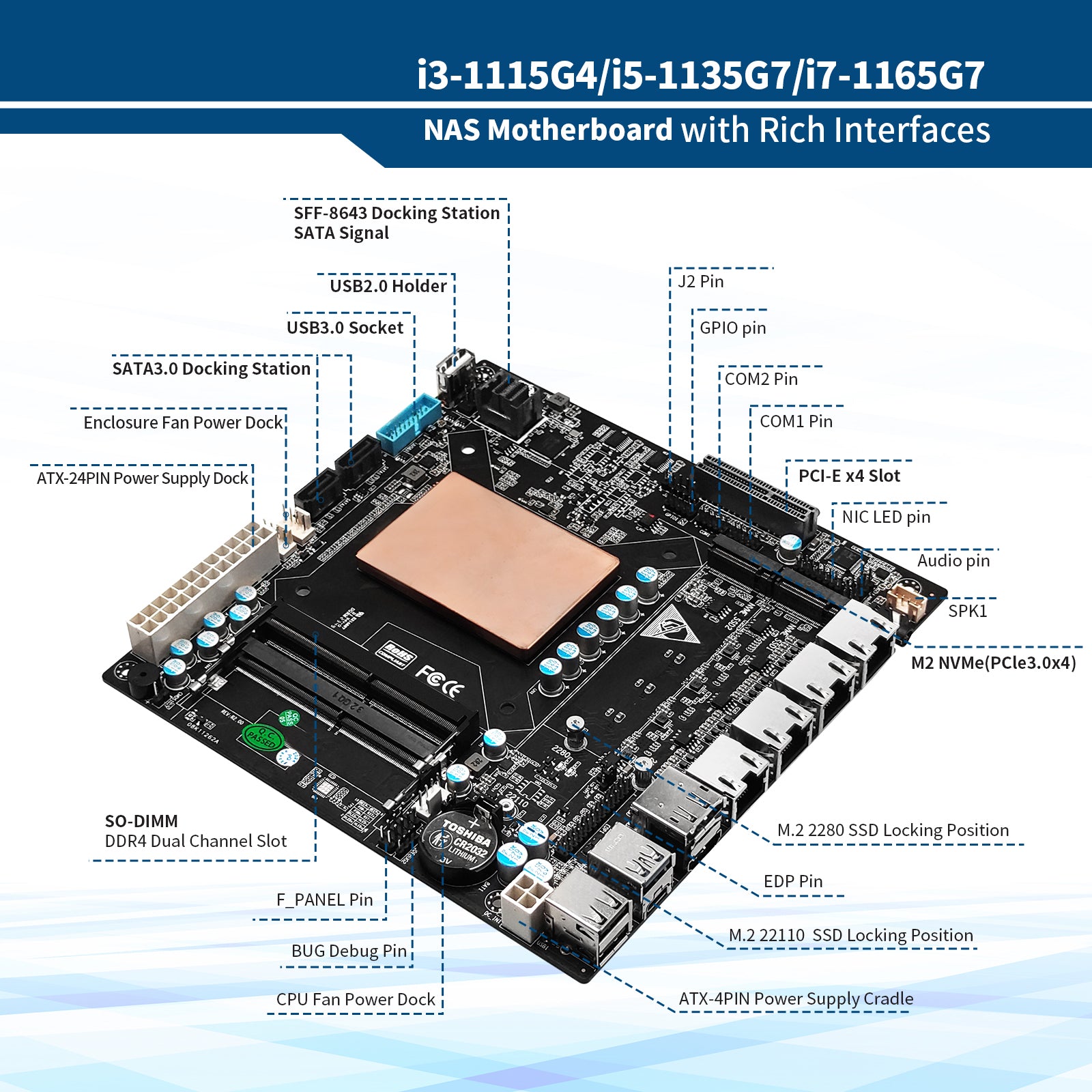

Varied interfaces: 4 × Intel i226-V 2.5GbE UDE-LAN, support DIY firewall micro appliance to secure your network. HD+DP+Type-C (USB4) total of 3 screen output ports, support 4K@60Hz. 1 PCI-E×4 slot (PCIe3.0×4 protocol), support the expansion of x8/x16 NICs and so on.
Memory/HDD specs: Dual-channel DDR4 SODIMM slots supporting 2400/2666/3200 MHz.There are two M.2 NVMe (PCIe3.0) slots for expandable size 2280 SSDs, one of which is also compatible with the 22110 size.
