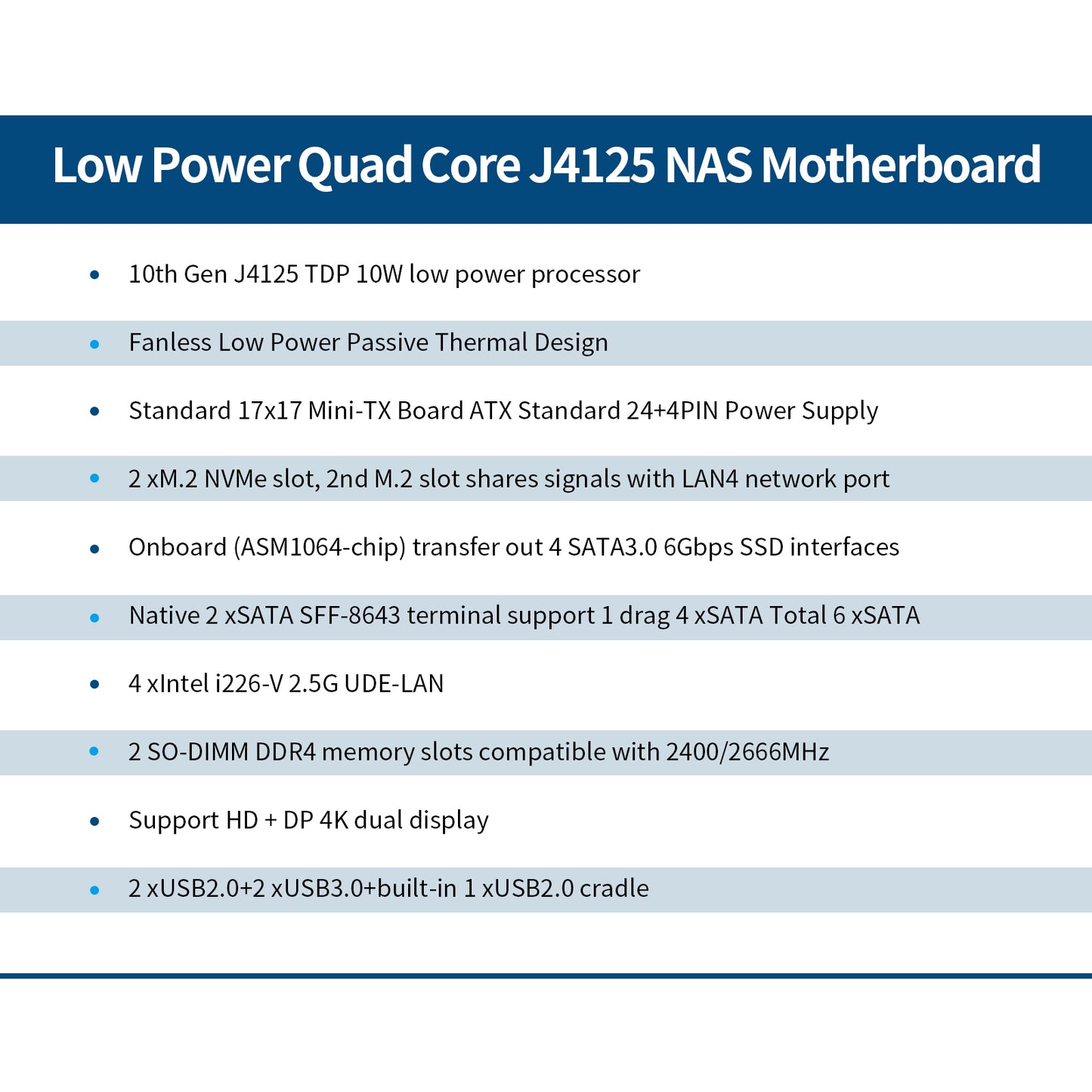

CWWK NAS Motherboard, 6 Bay, Celeron J4125 4 Cores 4 Threads TDP10W, Mini Itx, 4 × I226V 2.5GbE LAN, DDR4 8GB RAM 128GB NVMe SSD, 1 × SFF-8643, DP + HD(4K@30Hz) Dual Display

Mini-itx NAS motherboard: 17x17 standard Mini-ITX motherboard, aluminum CPU cooling, fanless low-power passive cooling design. It can be used for personal data storage and management, such as building a home audio/video system, smart photo album (QuMagie), home intelligence system (HomeAssistant), 24-hour unmanned live broadcasting system, personal netdisk,etc., and it can also be used for enterprise data storage and management, such as monitoring image storage, and enterprise cloud drive. etc.
Ultra-low power processor: Celeron J4125 ultra-low power processor, 4 cores, 4 threads, up to 2.7GHz, 4MB L3 cache. Built-in UHD Graphics 600, TDP 10W.
6-Bay: 1 x SFF-8643 seat, equipped with ASM1064 chip, single maximum support for expanding 4 SATA3.0. plus 2 SATA3.0 dock, the whole motherboard can support expanding up to 6 SATA3.0.
Varied interfaces: 4 × Intel i226-V 2.5GbE UDE-LAN, support DIY firewall micro appliance to secure your network. HD+DP total of 2 screen output ports, support 4K@30Hz.There are a COM pin to expand the COM ports for applications with industrial embedded systems.
Memory/HDD specs: Dual-channel DDR4 SODIMM slots supporting 2400/2666MHz.There are two M.2 NVMe slots for expandable SSDs.
