CWWK

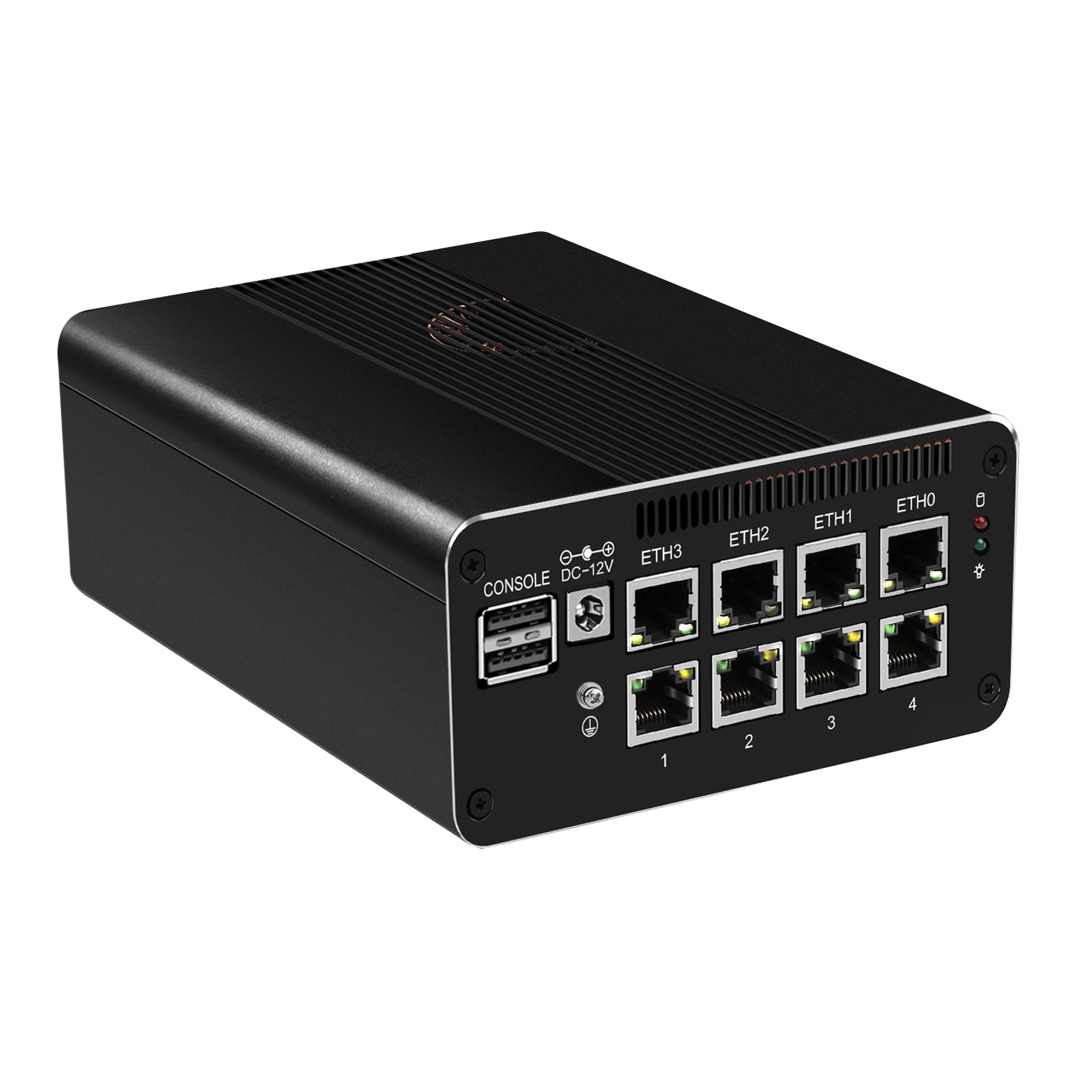

CWWK Mini PC Firewall Micro Appliance, 12th Gen Core i3 N305,8 Port i226V 2.5GbE LAN,12th Gen Alder Lake N200, OPNsense Router Hardware, Type-C, TF, SIM slot, 3 Display, DDR5 8GB RAM 128GB NVMe SSD

CWWK Mini PC Firewall Micro Appliance, 12th Gen Core i3 N305,8 Port i226V 2.5GbE LAN,12th Gen Alder Lake N200, OPNsense Router Hardware, Type-C, TF, SIM slot, 3 Display, DDR5 8GB RAM 128GB NVMe SSD

Regular price $699.00 USD
Regular price Sale price $699.00 USD
Sale Sold out
Shipping calculated at checkout.
CPU
DDR5 RAM/SSD

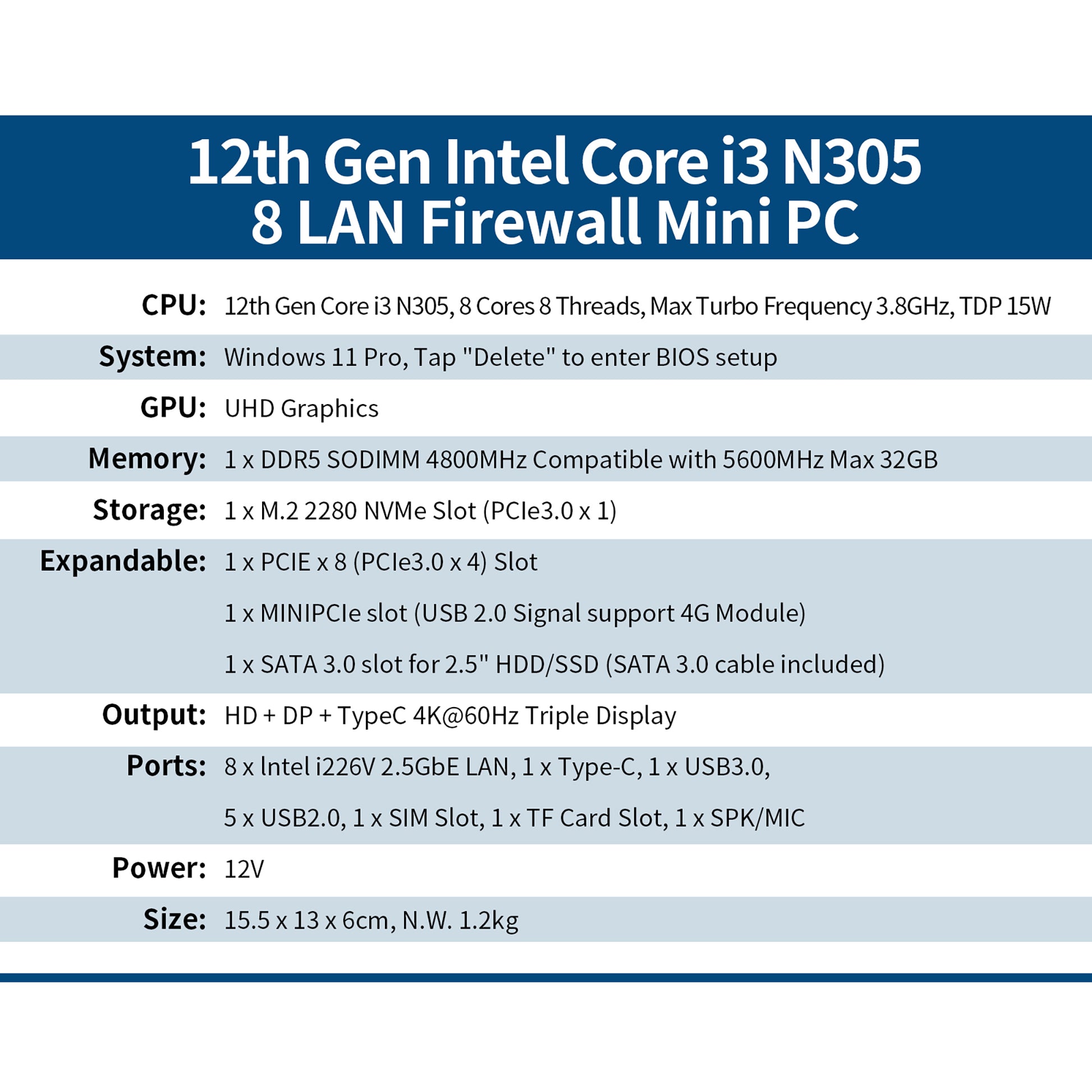

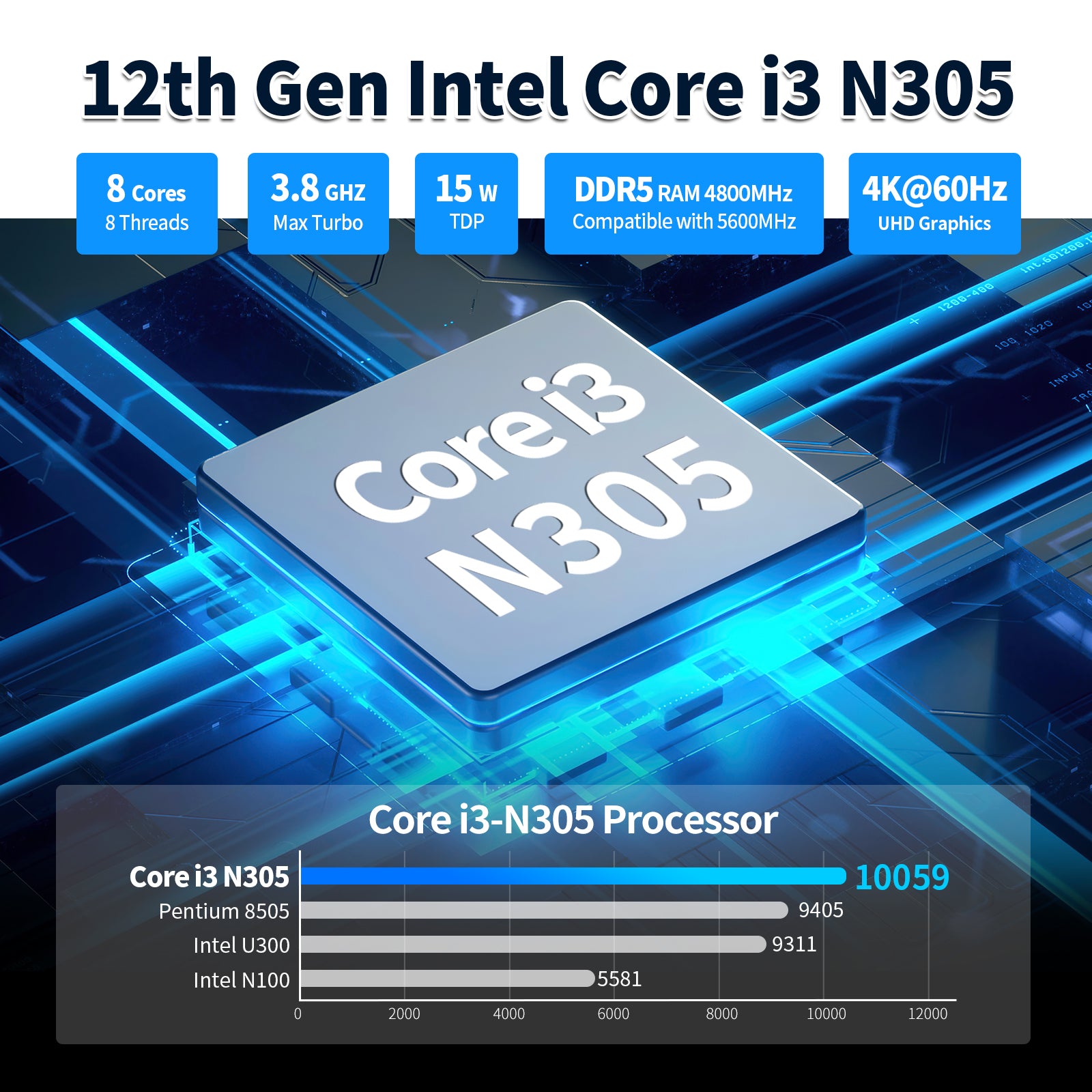

CPU: 12th Gen Core i3 N305 8C 8T, up to 3.8GHz, TDP15W

GPU: In-tel UHD Graphics with 32EU

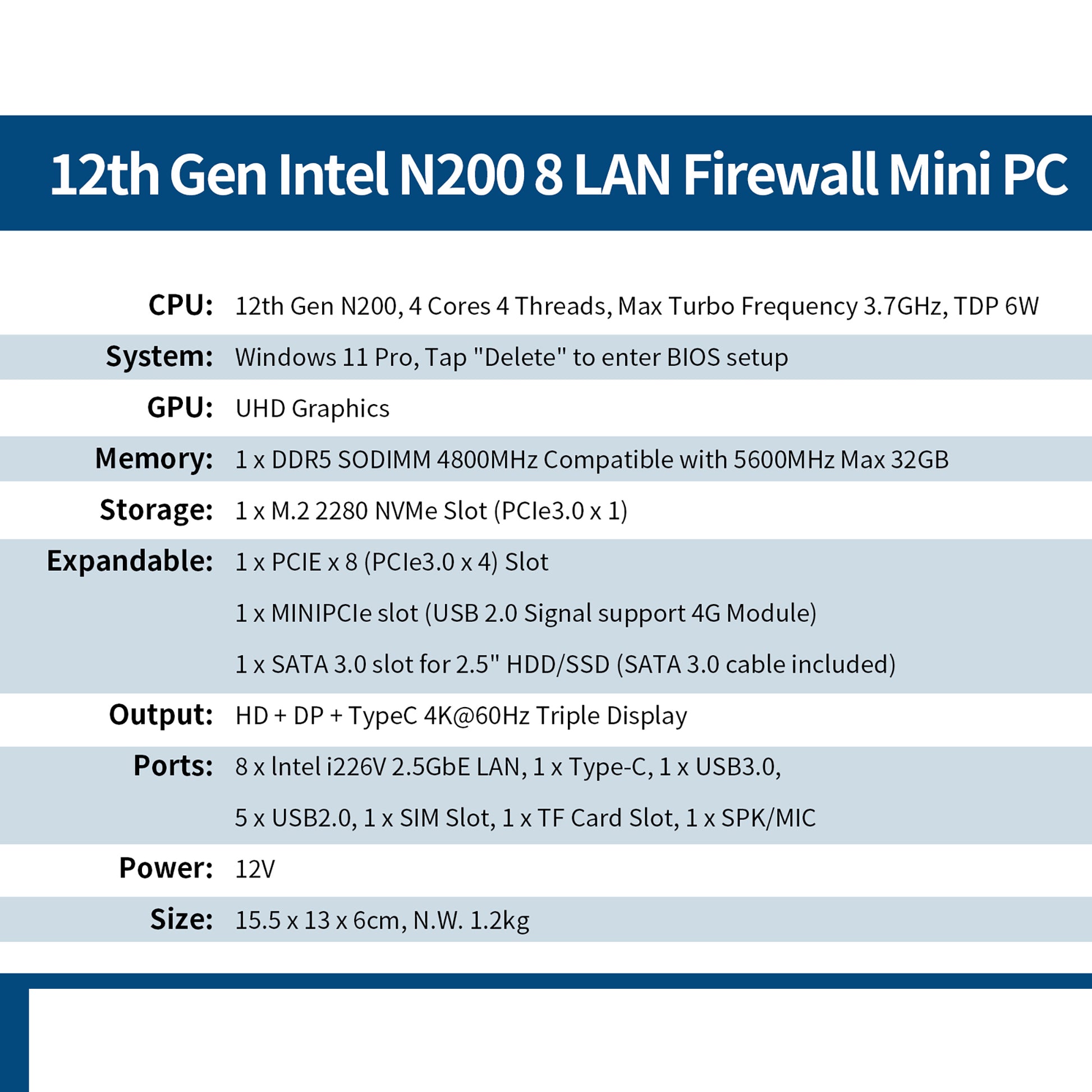

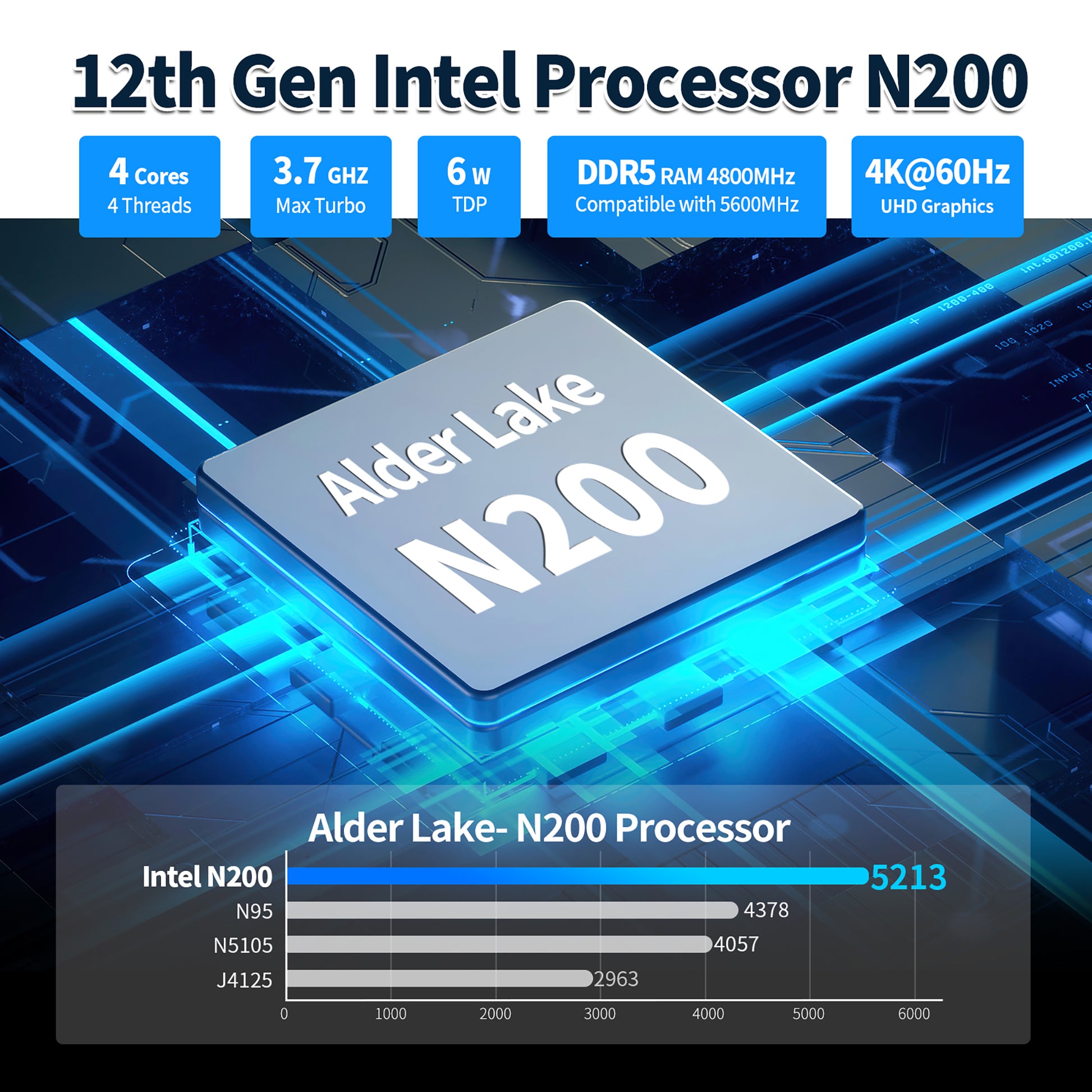

CPU: 12th Gen Alder Lake N200 4C 4T, up to 3.7GHz, TDP6W

GPU: In-tel UHD Graphics with 32EU

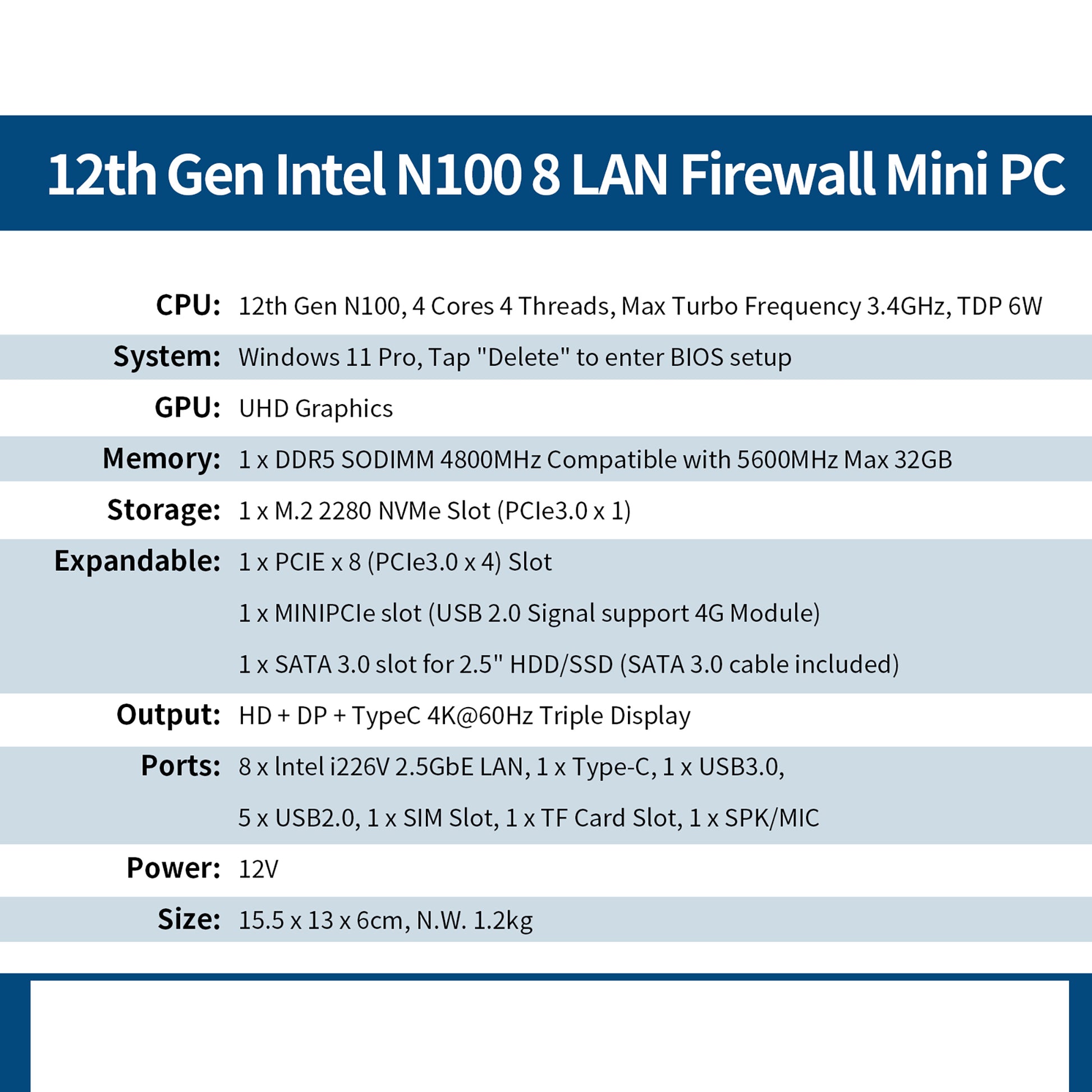

CPU: 12th Gen Alder Lake N100 4C 4T, up to 3.4GHz, TDP6W

GPU: In-tel UHD Graphics with 24EU



Chassis: Aluminum alloy with knockout hole, wiring the cables to the external

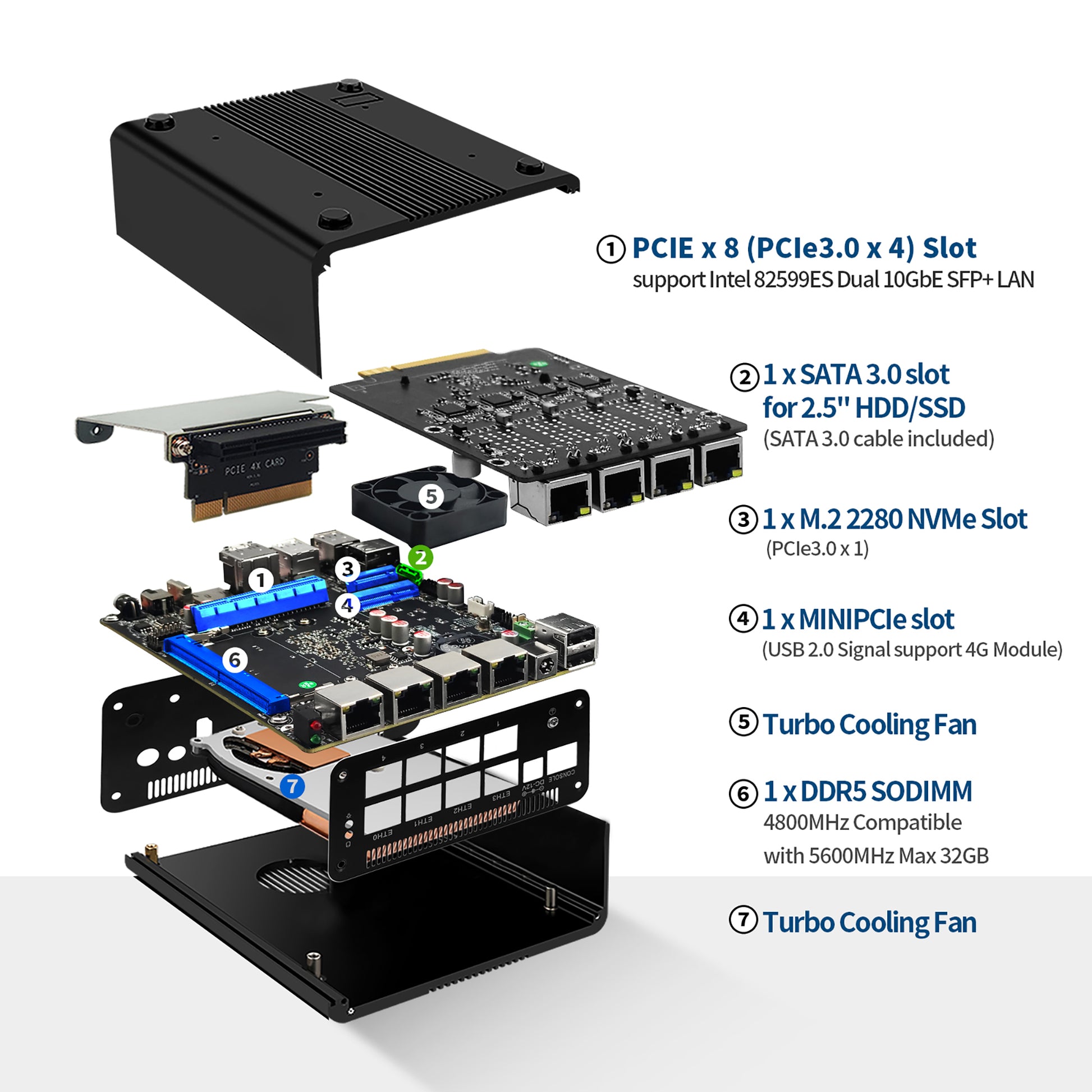

Memory: 1 x SODIMM DDR5 slot, up to 32GB

Storage: 1 x M.2 2280 NVME slot, 1 x sata3.0

Expandsion 1 x MINIPCIe slot for 4G module

Network Card: 8 x i226V 2.5GbE LAN

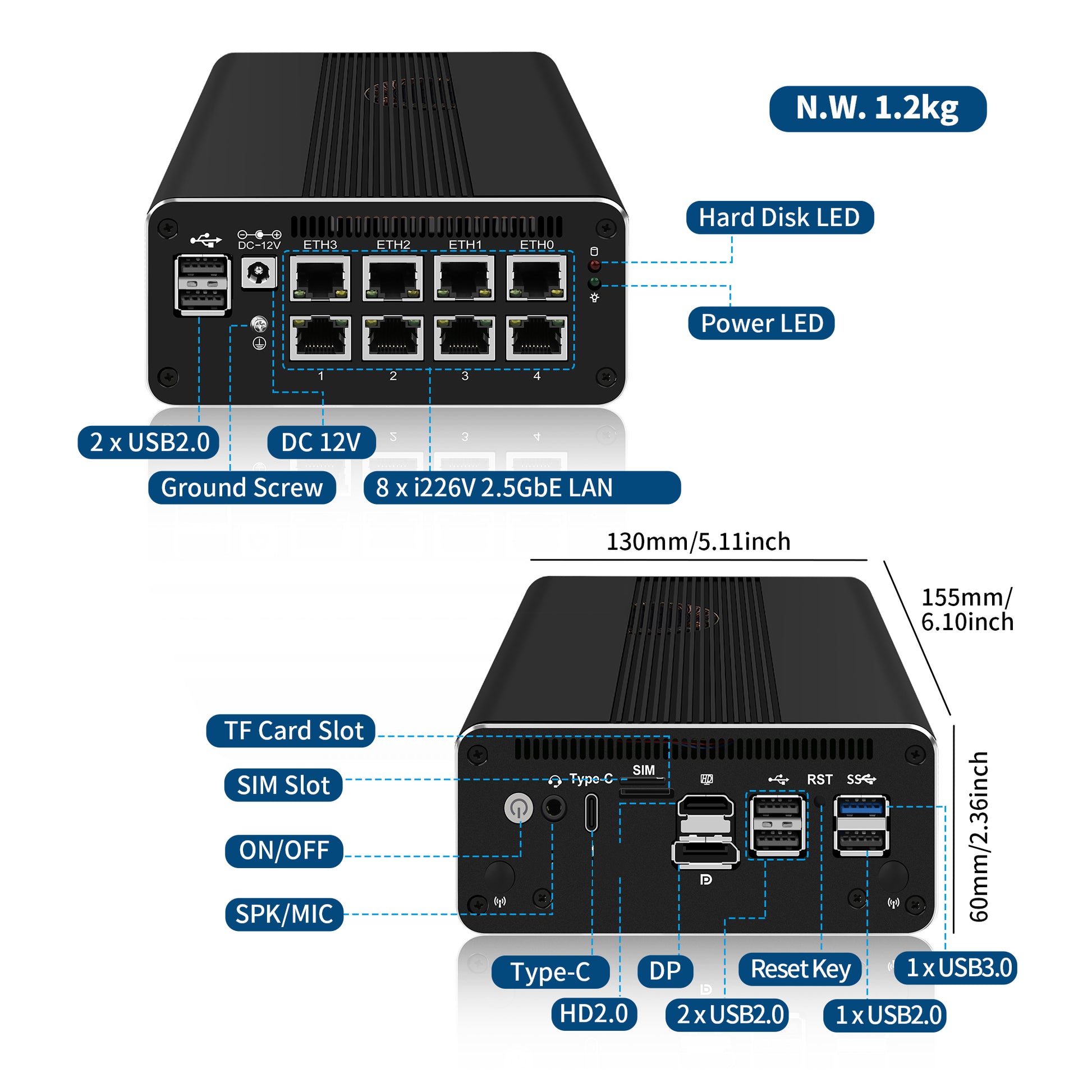

I/O Interface: Power ON/OFF, 5 x USB2.0, 1 x USB3.0, 1 x HDMl, 1 x DP, 1 x Type-C, 8 x LAN, 1 x TF slot for data storage / system boot, 1 x SIM slot, 1 x SPK/MIC, DC_IN

Power: DC 12-19V

Operating Temperature: 0°c~70°c

Storage Temperature: 0°c~70°c

Relative Humidity: 5%~85% non-condensing

Size: 5.11 x 6.1 x 2.36 inch

Weight: 2.65 LB

Packing List: 1 x AIOPCWA 8 LAN Mini PC, 1 x power adapter, 1 x power cord, 1 x VESA mount, 1 x sata3.0 cable

Function: Supports Auto Power On, Wake on LAN, AES-NI, system power management, temperature management

Compatibility: Windows, PF-sense, OPN-sense, Open-Wrt, Linux distros, PVE, EXSi supported. UEFI support only
