CWWK

CWWK Mini PC Firewall Micro Appliance,8 x i226V 2.5GbE LAN, DDR5 32GB RAM 2TB NVMe SSD, Support OPNsense, USB3.2, Type-C, TF Slot, 4 Display, Console

CWWK Mini PC Firewall Micro Appliance,8 x i226V 2.5GbE LAN, DDR5 32GB RAM 2TB NVMe SSD, Support OPNsense, USB3.2, Type-C, TF Slot, 4 Display, Console

Regular price $746.99 USD
Regular price Sale price $746.99 USD
Sale Sold out
Shipping calculated at checkout.
CPU
DDR5 RAM/SSD

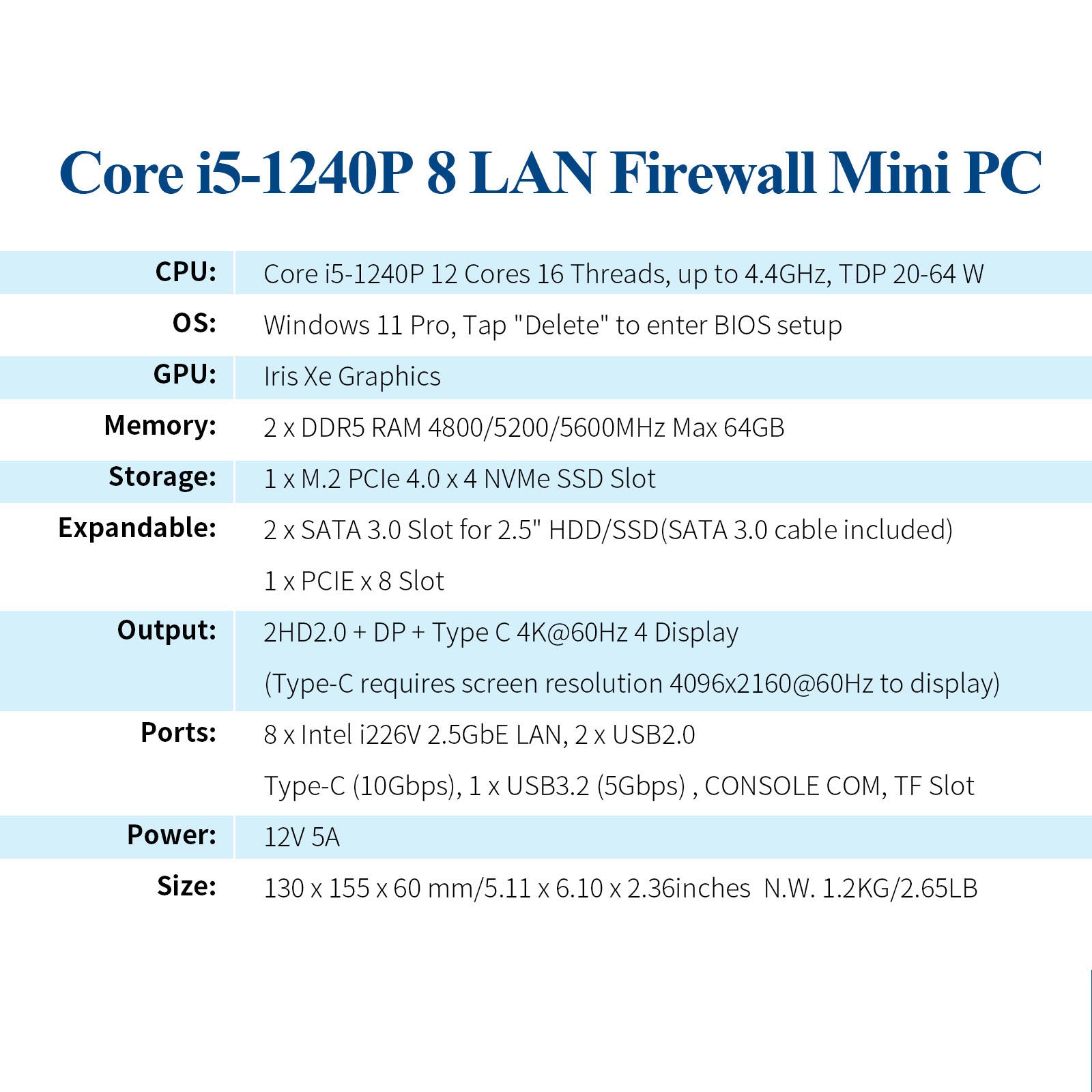

 8 LAN 12th Gen Core i5 1240P Firewall Mini PC
CPU: In-tel 12th Gen Core i5 1240P, 4 Performance-core + 8 Efficient-cores, 16 threads, 12MB Cache, up to 4.4 GHz.
GPU: lris Xe Graphics with 80 EUs.
TDP: 20-64W.

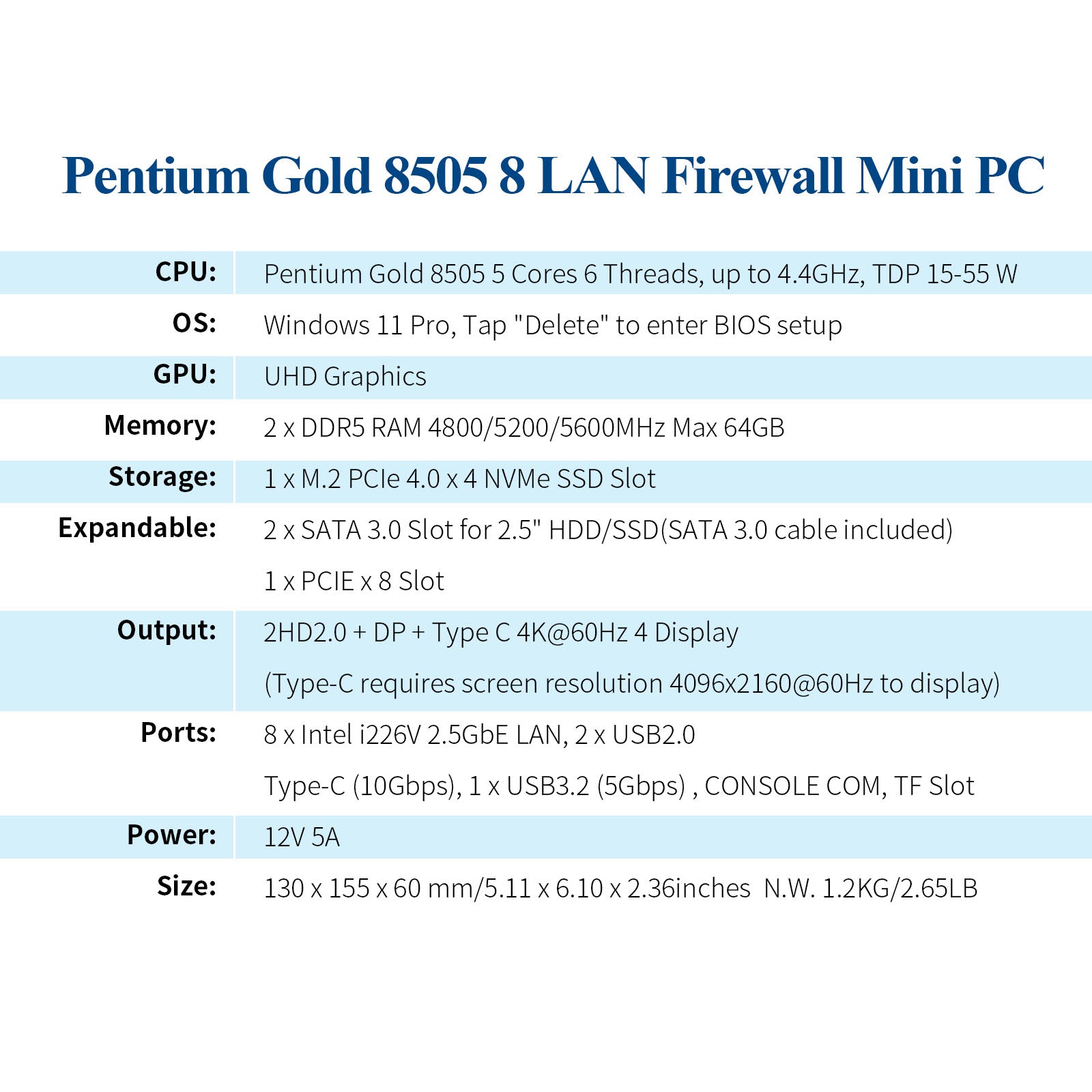

8 LAN 12th Gen Pentium Gold 8505 Firewall Mini PC
CPU: In-tel 12th Gen Pentium Gold 8505, 1 Performance-core + 4 Efficient-cores, 6 threads, 8MB Cache, up to 4.4 GHz.
GPU: UHD graphics with 48 EUs.
TDP: 12-55 W.

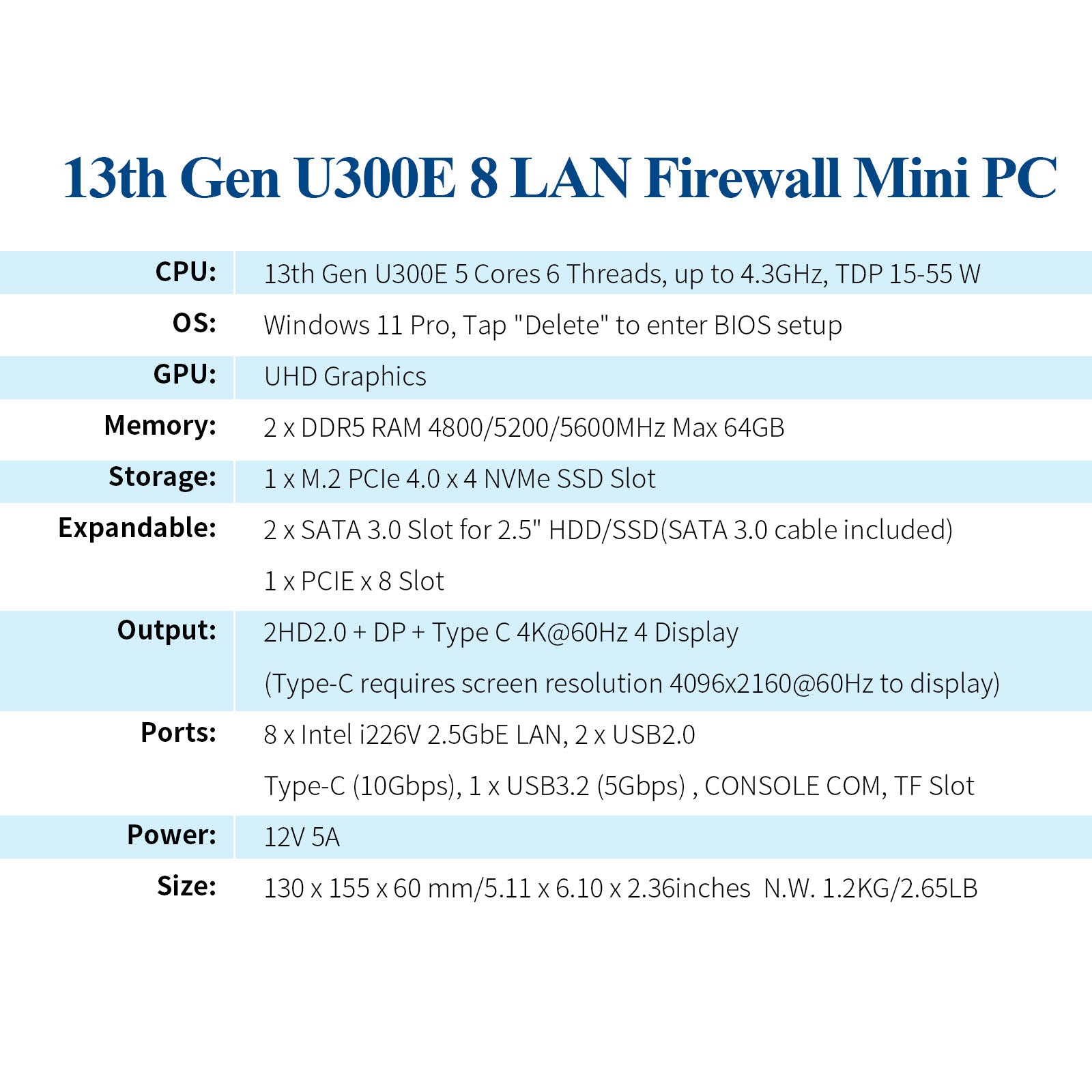

8 LAN 13th Gen Raptor Lake U300E Firewall Mini PC
CPU: In-tel 13th Gen Raptor Lake U300E, 1 Performance-core + 4 Efficient-cores, 6 threads, 8MB Cache, up to 4.3 GHz.
GPU: UHD graphics with 48 EUs.
TDP: 12-55 W.



System: Windows 11 Pro

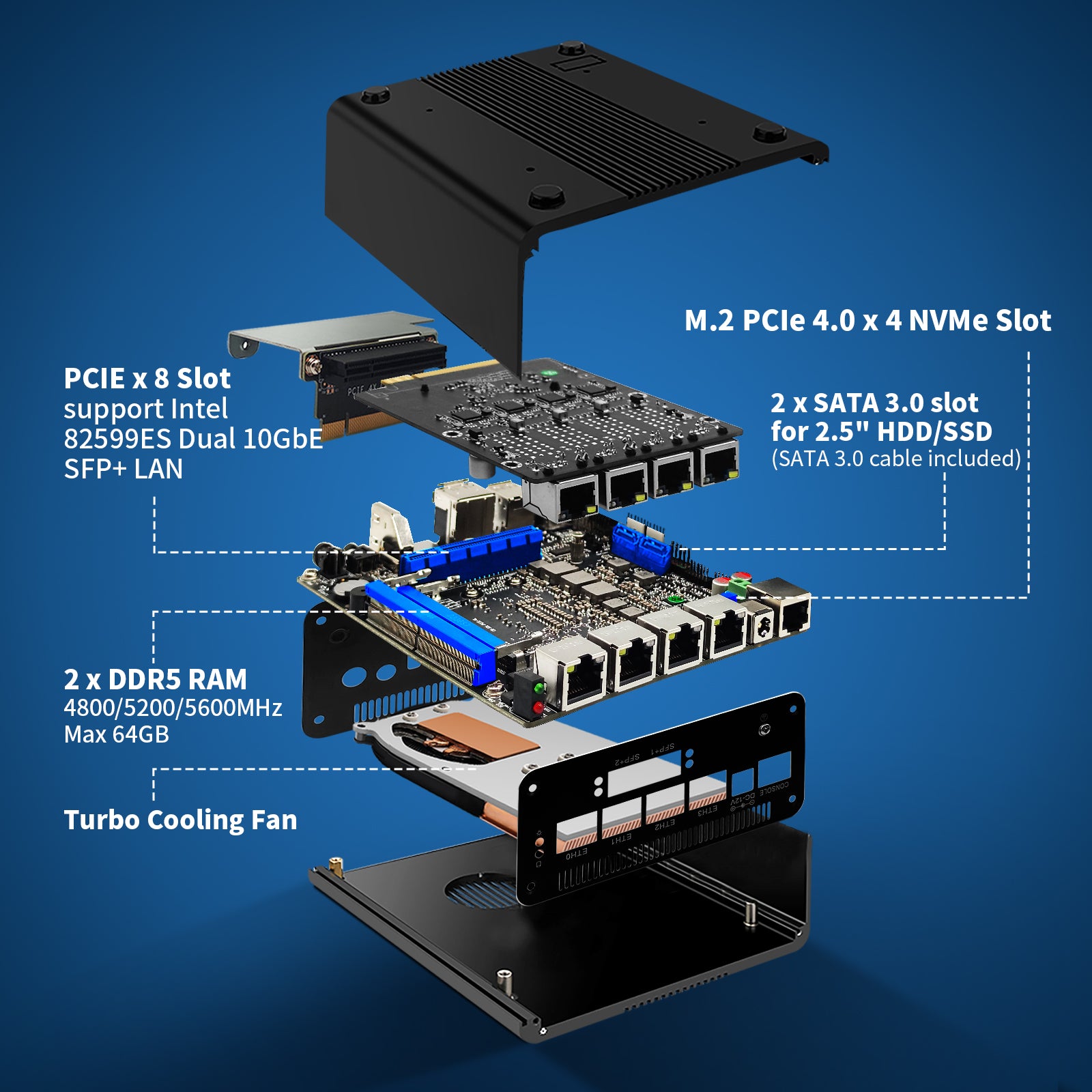

RAM: 2 x DDR5 SODIMM Slot, max 64 GB.
SSD: 1 x M.2 2280 NVMe ( Pcie4.0 x 4) Slot.
Expand: 2 x SATA3.0 slot for 2.5"HDD/SSD.

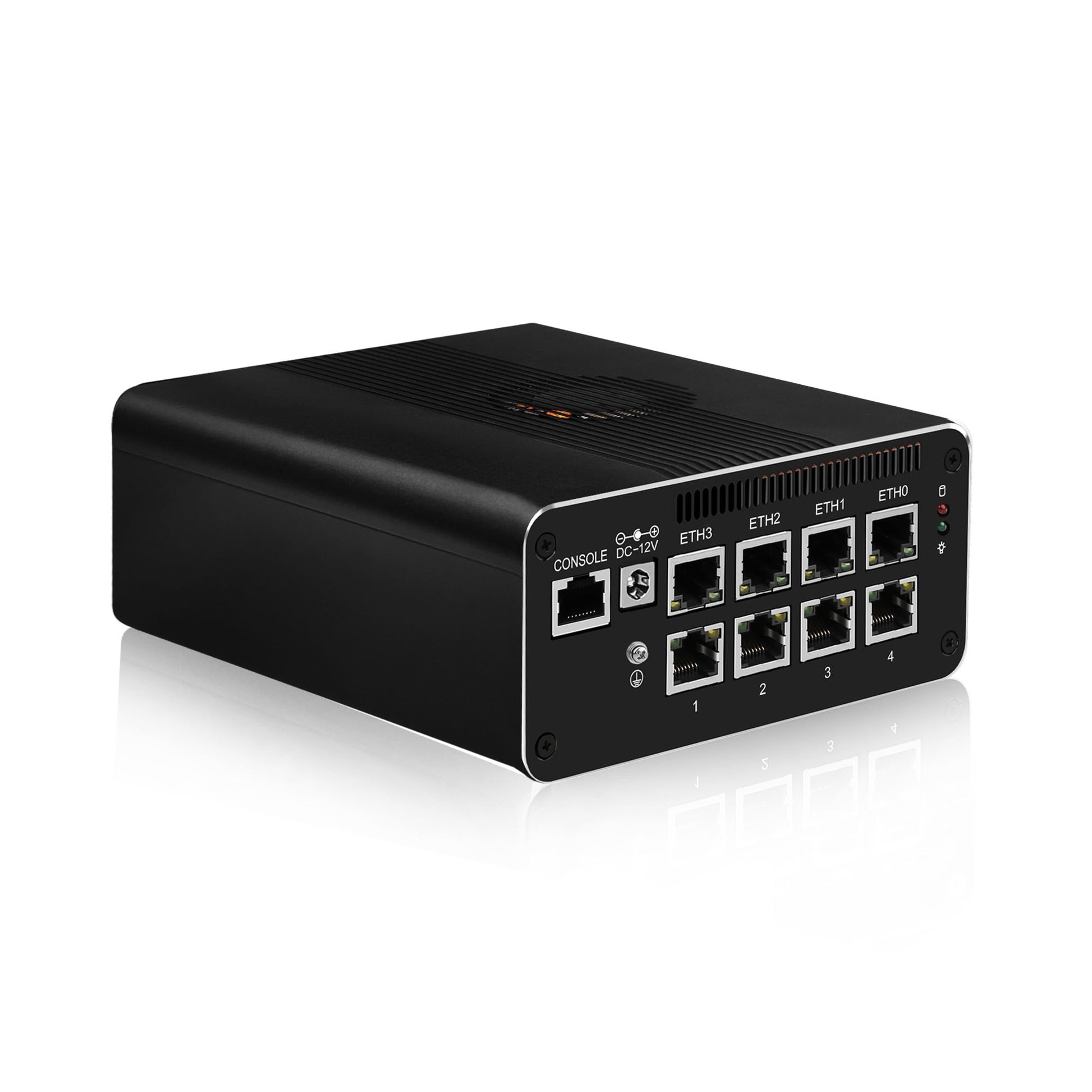

LAN Port: 8 x 2.5GbE I226-V
TF Slot: TF card holder support system boot or data storage.
Display: 2 x HD2.0 + DP1.4 + Type C support 4K@60Hz 4 displays (Type-C requires resolution 4096x2160@60Hz to support the display).
FAN: 1 x Turbo cooling fan.
Feature: Support AES-NI, Wake-on-LAN, Auto power on, etc.

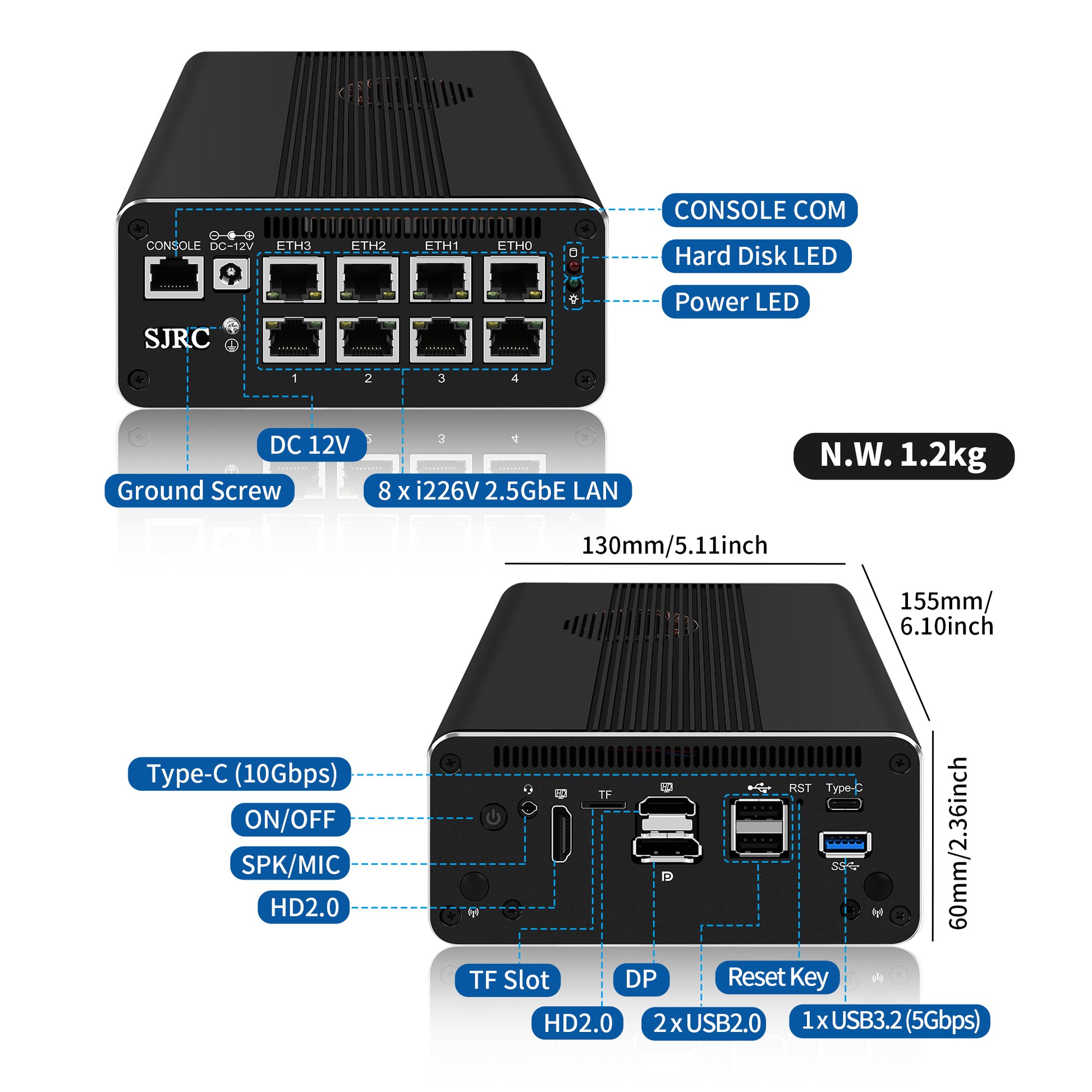

I/O: 8 x LAN, 2 x HD, 1 x DP, 1 x Type-C, 1 x DC power input, 1 x TF card slot, 1 x USB3.2 (5Gbps), 2 x USB2.0, 1 x ON/OFF, 1 x SPK/MIC, 1 x Reset Key, 1 x Console COM.
Firewall Case: Aluminum alloy
Operating Temperature: 0°c~70°c
Storage Temperature: 0°c~70°c
Relative Humidity: 5%~85% non-condensing
Power: DC 12-19V
Packing List: 1 x SJRC 8 Ethernet Ports Mini PC, 1 x Power Adapter, 1 x SATA Cable, 1 x VESA Mount.
Weight: 1.2 KG/2.65 LB Size: 15.5 x 13 x 6 CM/5.11 x 6.10 x 2.36 IN
